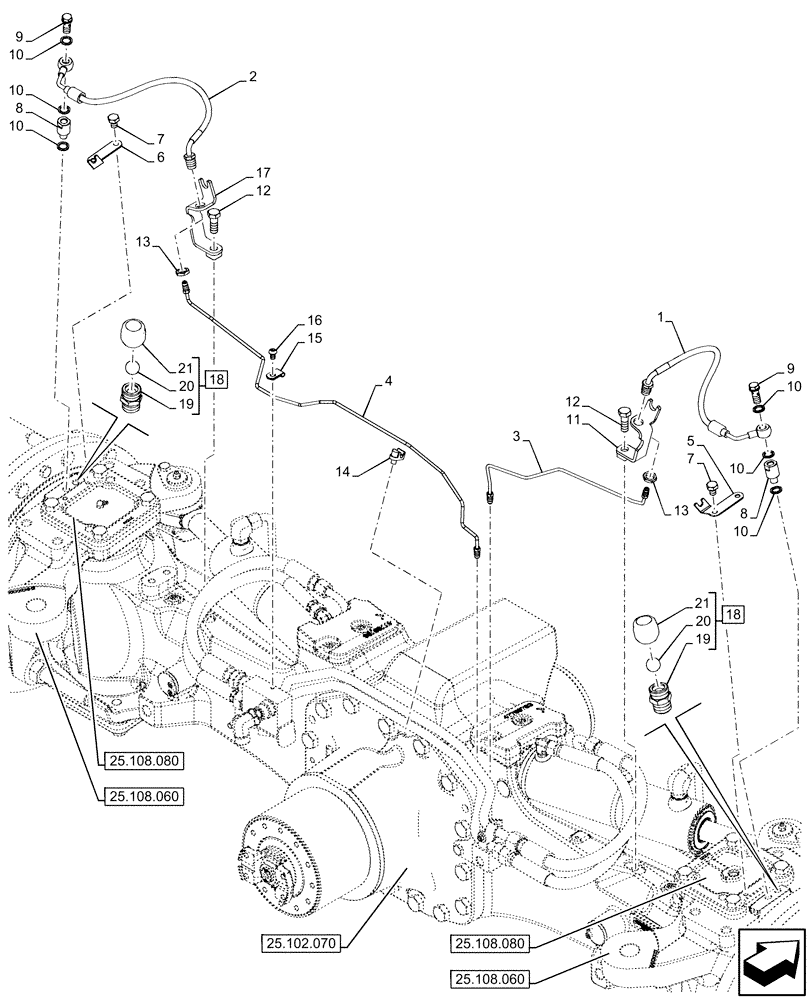

Запчасти Case IH OPTUM 270 CVT (25.102.080) - VAR - 758796- FRONT AXLE, W/ FRONT BRAKES, HYD. LINE (25) - FRONT AXLE SYSTEM

1

47875273

HOSE

RH Brake

1шт.

2

47875263

HOSE

LH Brake

1шт.

3

47737370

PIPE

RH Brake

1шт.

4

47737368

PIPE

LH Brake

1шт.

5

47783497

BRACKET

RH

1шт.

6

47801627

BRACKET

LH

1шт.

7

16043034

SCREW,M8 x 12mm, Cl 10.9

4шт.

8

47652011

HYD CONNECTOR,M12 x 1.5 x 41mm L

2шт.

9

47883178

BANJO BOLT,Hex, M12 x 1.25 x 28mm

2шт.

10

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

6шт.

11

47871803

BRACKET

RH

1шт.

12

15540524

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8

2шт.

13

10718111

THIN NUT,Thin, M16 x1.00mm, 8.00mm High, Cl 04

2шт.

14

14571780

CLIP

1шт.

15

47799518

CLAMP,7.1mm HD x 12.7mm W

1шт.

16

84139321

SCREW

Hex, M6 x 10

1шт.

17

47872541

BRACKET

LH

1шт.

18

13413290

BREATHER

ASSY, Incl 19 (Qty 1), 20 (Qty 1), 21 (Qty 1)

2шт.

19

NSS

NOT SOLD SEPARAT

Breather, Incl in 18

2шт.

20

20419330

BALL,8.731mm D, 0.1Kg

2шт.

21

NSS

NOT SOLD SEPARAT

Cover, Incl in 18

2шт.
