Запчасти Case IH OPTUM 270 CVT (25.102.060) - VAR - 758795, 758796 - FRONT AXLE, DIFFERENTIAL PINION SHAFT & GEARS, DIFFERENTIAL GEAR (25) - FRONT AXLE SYSTEM

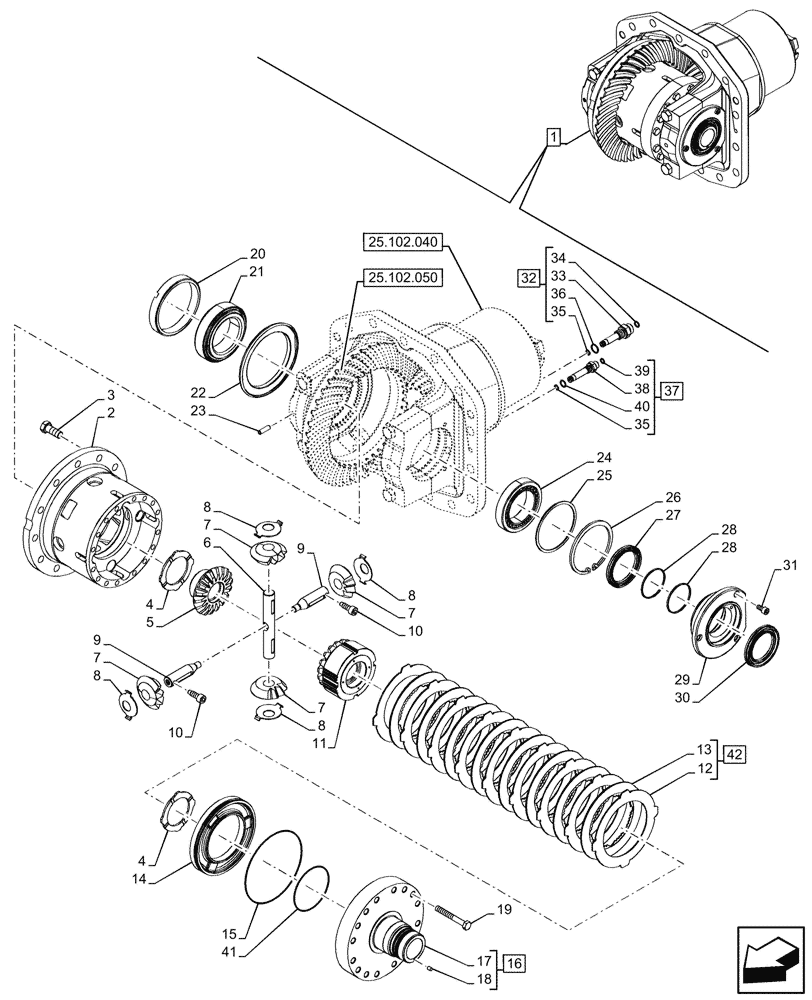

Схема запчастей Case IH OPTUM 270 CVT - (25.102.060) - VAR - 758795, 758796 - FRONT AXLE, DIFFERENTIAL PINION SHAFT & GEARS, DIFFERENTIAL GEAR (25) - FRONT AXLE SYSTEM
25.102.040
11
16
20
19
32
27
12
1
23
10
18
36
35
33
7
10
30
15
4
25
35
8
22
38
8
2
3
14
37
29
21
24
6
4
9
17
8
5
9
28
13
42
26
39
31
28
34
8
7
40
7
7
41
25.102.050

Артикул

Название

Примечание

Количество

1

47489667

DIFFERENTIAL ASSY

ASSY, Incl 2 - 41

1шт.

See also Figure 25.102.040, 25.102.050

1шт.

2

84566858

HOUSING

1шт.

3

87742345

BOLT,Hex, M14 x 1.5 x 35mm, Cl 10.9, Full Thd

12шт.

4

84321230

WASHER,61mm ID x 84/91mm OD x 3.5mm Thk

2шт.

5

47384785

DIFFERENTIAL GEAR,18/25T

RH

1шт.

6

47521909

PIN,21.96mm OD x 153mm L

1шт.

7

87553914

GEAR,11T

Spider

4шт.

8

84266205

THRUST WASHER,22mm ID x 49mm OD x 1.5mm Thk

4шт.

9

47521910

PIN,11.99mm OD x 86.5mm L

2шт.

10

84415812

SCREW,M10 x 1.5 x 29mm, Cl 8.8

2шт.

11

47384782

DIFFERENTIAL GEAR,18/25T

LH

1шт.

12

84415806

PLATE

9шт.

13

84415804

PLATE,107.42mm ID x 166mm OD x 2.77mm Thk

8шт.

14

47778222

PISTON

1шт.

15

87591919

O-RING,0.139" Thk x 5.984" ID, -258, Cl 7, 75 Duro

1шт.

16

47597880

CARRIER

ASSY, Incl 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

Carrier, Incl in 16

1шт.

18

87373620

PLUG,2.2mm ID x 4.9mm OD

5mm

1шт.

19

47866311

SCREW,M10 x 80mm, Class 10.9mm

M10 x 80mm, Class 10.9mm

16шт.

20

87544772

RING NUT,M124

M124

1шт.

21

84271167

BEARING,75mm ID x 120mm OD x 31mm W

1шт.

22

84321316

SEAL,120.1mm ID x 160.3mm OD x 13.2mm Thk

1шт.

23

84179663

SET SCREW,Hex, M8 x 1.25 x 30, Full Thd

M8 x 30

1шт.

24

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

1шт.

25

5135019

SHIM,98.8mm ID x 109.8mm OD x 1mm Thk

1шт.

25

5135020

SHIM,98.8mm ID x 109.8mm OD x 1.1mm Thk

1шт.

25

5135021

SHIM,98.8mm ID x 109.8mm OD x 1.2mm Thk

1шт.

25

5135022

SHIM,98.8mm ID x 109.8mm OD x 1.3mm Thk

1шт.

25

5135023

SHIM,98.8mm ID x 109.8mm OD x 1.4mm Thk

1шт.

25

5135024

SHIM,98.8mm ID x 109.8mm OD x 1.5mm Thk

1шт.

25

5135025

SHIM,98.8mm ID x 109.8mm OD x 1.6mm Thk

1шт.

25

5135026

SHIM,98.8mm ID x 109.8mm OD x 1.7mm Thk

1шт.

25

5135027

SHIM,98.8mm ID x 109.8mm OD x 1.8mm Thk

1шт.

25

5135028

SHIM,98.8mm ID x 110mm OD x 1.9mm Thk

1шт.

25

5135029

SHIM,2mm Thk

1шт.

26

11075476

SNAP RING,M110, Int

1шт.

27

84304125

SEAL,67.2mm ID x 88mm OD x 9.45mm Thk

1шт.

28

47469215

SEALING RING,Locking, 60.33mm ID x 63.53mm OD x 2.4mm Thk

2шт.

29

47460977

CARRIER

1шт.

30

84304123

SEAL,60.2mm ID x 88mm OD x 9.45mm Thk

1шт.

31

14306231

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 10.9, Full Thd

3шт.

32

84586887

FITTING,M18 x 1.5 x 79mm L

ASSY, Incl 33, 34 , 35 (Qty 1), 36

1шт.

33

NSS

NOT SOLD SEPARAT

Fitting, Incl in 32

1шт.

34

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

36

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

37

84307666

FITTING,M14 x 1.5 x 75.5mm L

ASSY, Incl 35 (Qty 1), 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

Fitting, Incl in 37

1шт.

39

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

40

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

41

14465781

O-RING,3.609" ID x 3.887" OD x 0.139"

1шт.

42

47912747

CLUTCH PACK

ASSY, Incl 12, 13

1шт.

Выбрано товаров: 53
