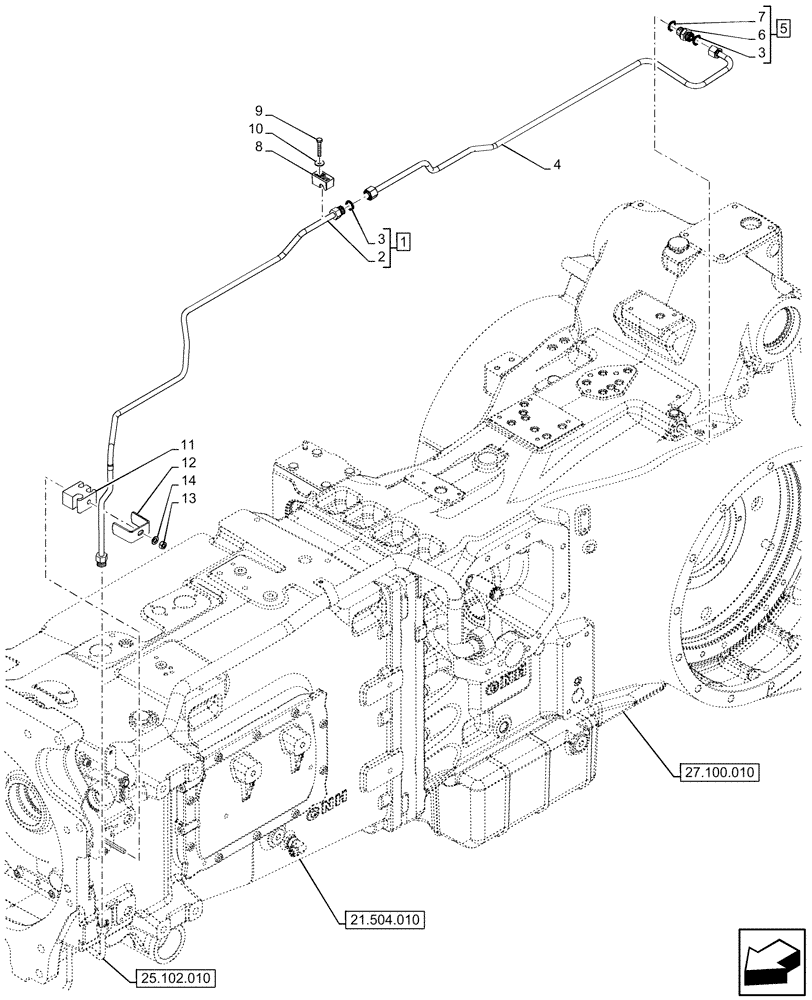

Запчасти Case IH OPTUM 270 CVT (25.102.020) - VAR - 391138, 758022, 758870, 759053 - FRONT, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM

1

47744462

PIPE

ASSY, from Front Differential to Rear Transmission Housing, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

47716898

PIPE

from Front Differential to Rear Transmission Housing

1шт.

5

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 3 (Qty 1), 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

7

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

8

84368933

BRACKET

1шт.

9

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

10

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

1шт.

11

47876299

CLAMP BRACKET

1шт.

12

47876300

BRACKET

1шт.

13

16102211

NUT,M8, Cl 10

1шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
