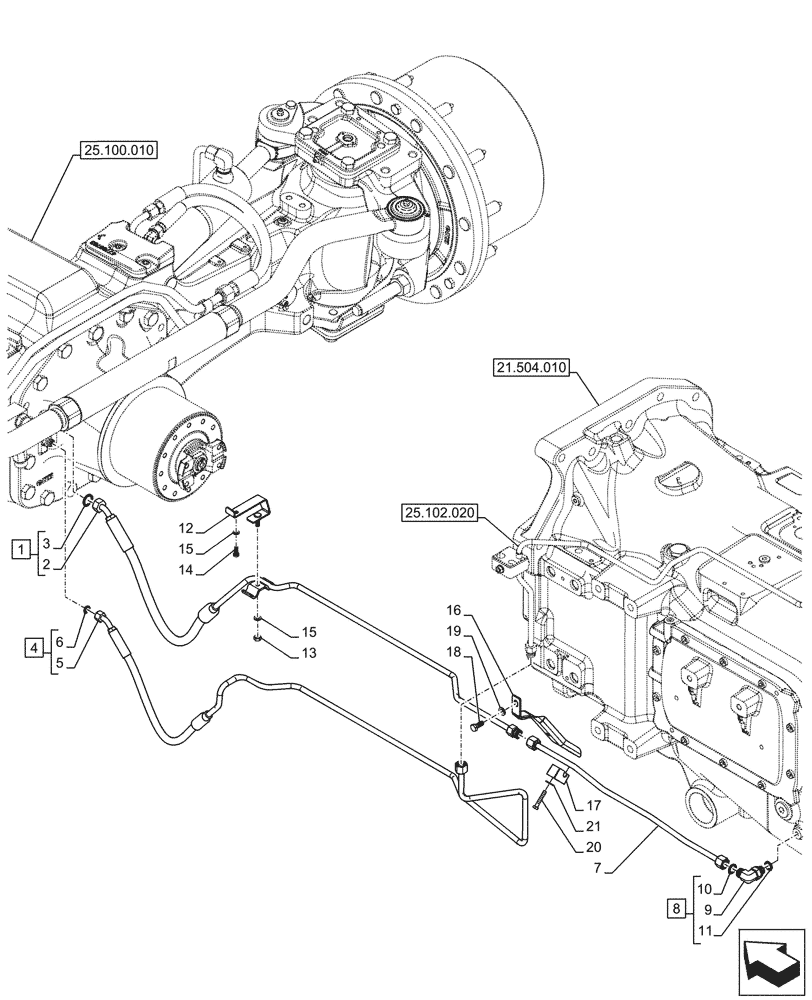

Запчасти Case IH OPTUM 270 CVT (25.102.010) - VAR - 391138, 758022, 758870, 759053 - FRONT, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM

1

47894362

PIPE

ASSY, from Front Axle to Gearbox, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

47739807

PIPE

ASSY, from Front Axle to Front Differential Pipe, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Pipe, Incl in 4

1шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

7

47723933

PIPE

from Front Axle to Gearbox

1шт.

8

5185050

ELBOW,M16 x 1.5 x 37mm

ASSY, Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

10

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

11

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

12

47894364

BRACKET

1шт.

13

9706755

NUT,M6, Cl 8

1шт.

14

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

47796125

BRACKET

1шт.

17

84368933

BRACKET

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

19

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

20

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

21

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

1шт.
