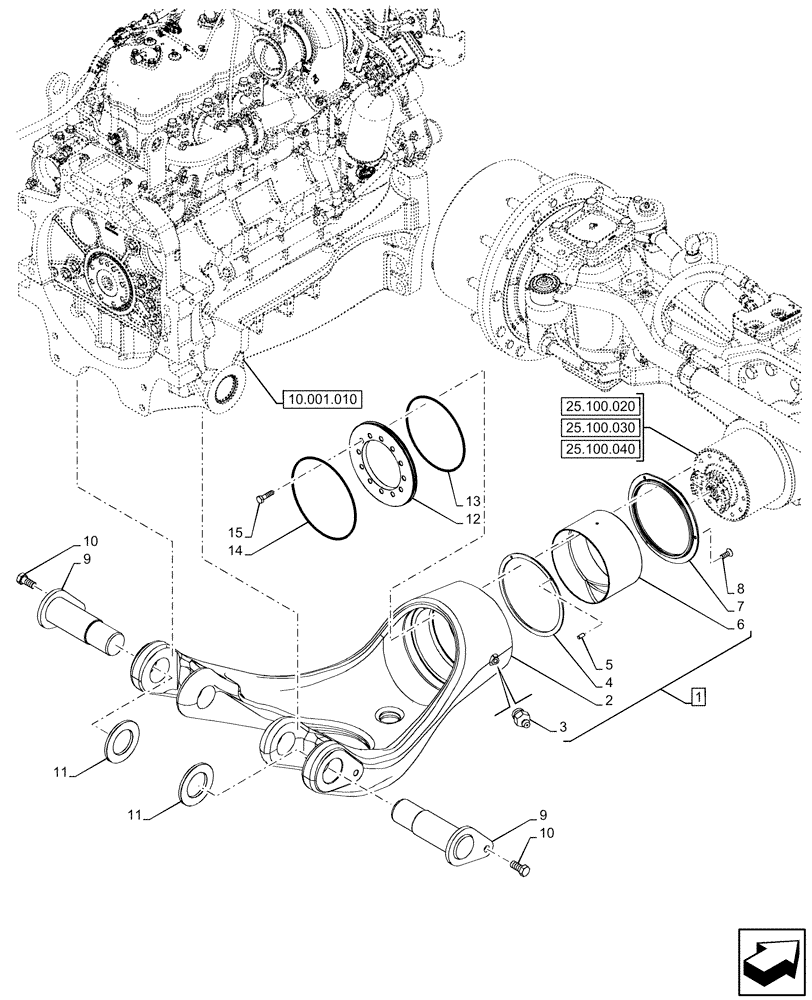

Запчасти Case IH OPTUM 270 CVT (25.100.050) - VAR - 758795, 758796 - FRONT AXLE, SUSPENSION (25) - FRONT AXLE SYSTEM

1

47664128

ARM

ASSY, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Suspension Armi, Incl in 1

1шт.

3

13407211

LUBE NIPPLE,M10 x 1

1шт.

4

47592504

THRUST WASHER,195mm ID x 217mm OD x 4mm Thk

1шт.

5

10335920

PIN,6mm OD x 14mm L

2шт.

6

47592499

BUSHING,190.05mm ID x 195.15mm OD x 111mm L

1шт.

7

47592508

THRUST WASHER,199mm ID x 235mm OD x 10mm Thk

1шт.

8

14441331

HEX SOC SCREW,Flat Csk Hd, M6 x 16mm, Cl 10.9

3шт.

9

47592494

PIN,205mm L

2шт.

10

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

11

47592495

WASHER,65.8mm ID x 110mm OD x 7.27mm Thk

2шт.

12

47592497

RETAINER,130mm ID x 218mm OD x 14mm Thk

1шт.

13

87302761

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

1шт.

14

14483280

O-RING,8.225" ID x 0.210"

1шт.

15

11307034

BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd

12шт.
