(25.100.010) - VAR - 758795 - FRONT AXLE, MOUNTING

Запчасти Case IH OPTUM 270 CVT (25.100.010) - VAR - 758795 - FRONT AXLE, MOUNTING (25) - FRONT AXLE SYSTEM

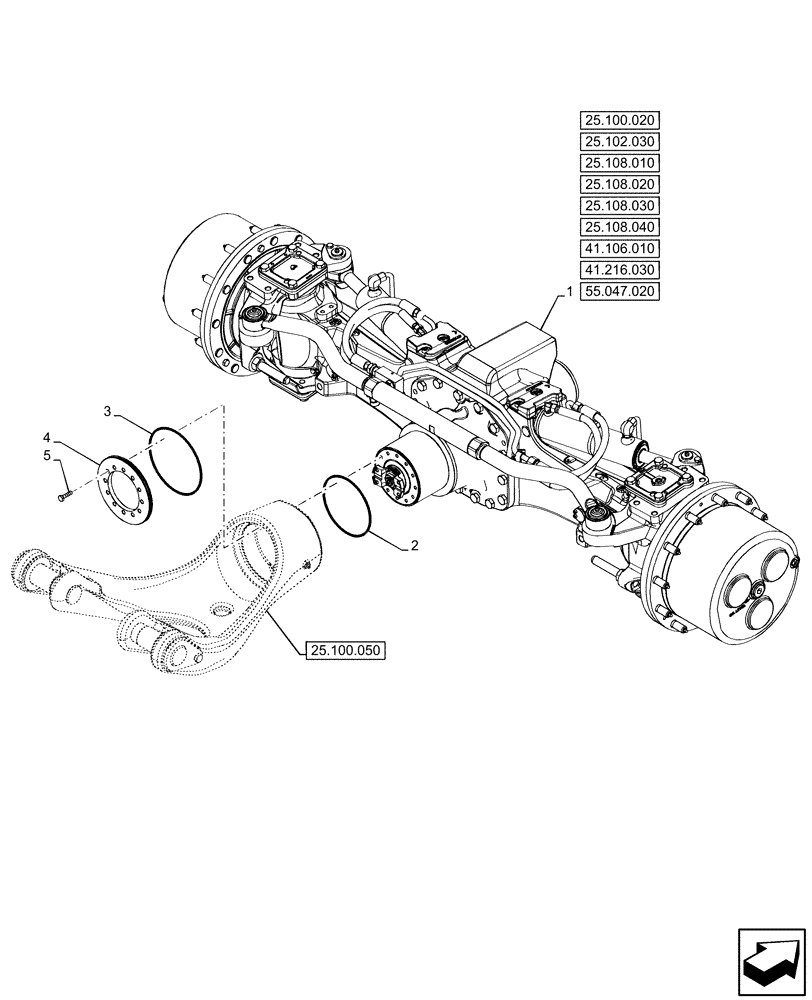

Схема запчастей Case IH OPTUM 270 CVT - (25.100.010) - VAR - 758795 - FRONT AXLE, MOUNTING (25) - FRONT AXLE SYSTEM
41.216.030
3
4
1
2
5
25.100.020
41.106.010
25.108.010
25.108.030
25.102.030
25.108.040
55.047.020
25.108.020
25.100.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47496687

FRONT AXLE

ASSY

1шт.

2

87302761

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

1шт.

3

14483280

O-RING,8.225" ID x 0.210"

1шт.

4

47592497

RETAINER,130mm ID x 218mm OD x 14mm Thk

1шт.

5

11307034

BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd

12шт.

Выбрано товаров: 5
