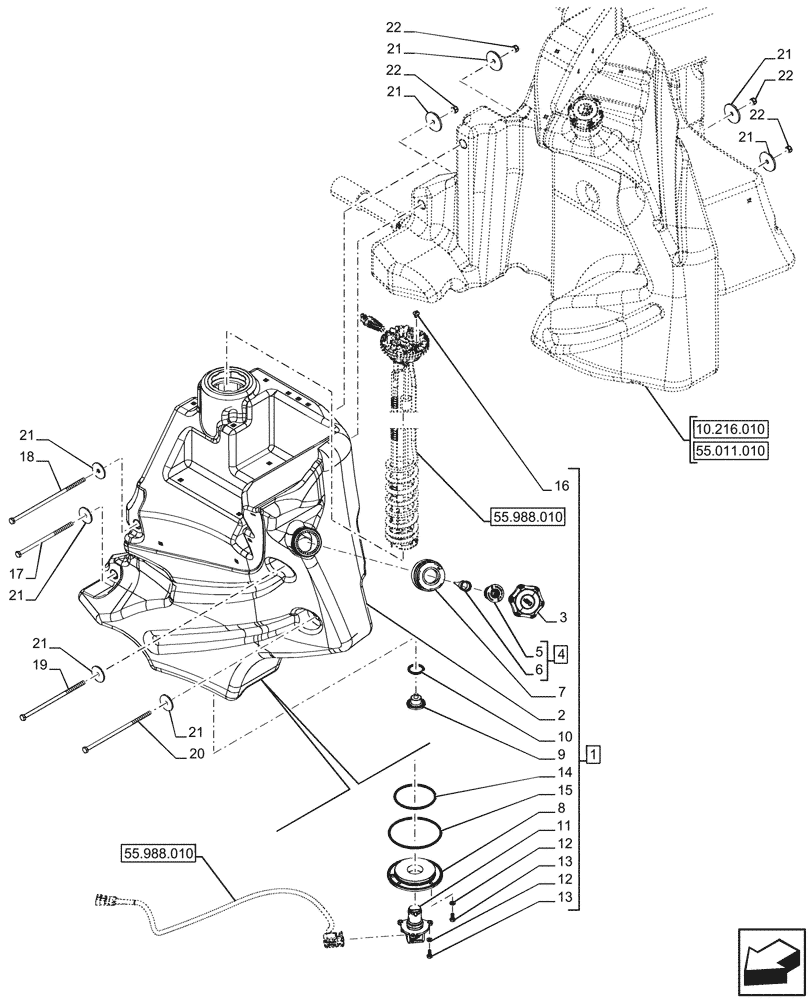

Запчасти Case IH OPTUM 270 CVT (10.500.010) - VAR - 391131, 758005 - DEF/ADBLUE™ TANK (10) - ENGINE

1

47733766

FUEL TANK

ASSY, Incl 2 - 16

1шт.

See Urea also Tank Components in Figure 55.988.010

1шт.

2

NSS

NOT SOLD SEPARAT

Urea Tank, Incl in 1

1шт.

3

84206552

FILLER CAP,Male

1шт.

4

47702454

NECK FILLER

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Filter, Incl in 4

1шт.

6

47752169

FILTER, DEF

40 Micron

1шт.

7

84236736

NECK FILLER

1шт.

8

47446340

FLANGE

1шт.

9

84180403

DRAIN PLUG

1шт.

10

84180404

O-RING,3.5mm Thk x 39.0mm ID

1шт.

11

47520143

SENSOR,12V

1шт.

12

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

7шт.

13

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

7шт.

14

47447771

O-RING,3.359” ID x 3.637” OD x 1/8” W

1шт.

15

47451700

O-RING,4.487” ID x 4.693” OD x 3/32” W

1шт.

16

47751458

PLUG,10.2mm OD x 11mm L

1шт.

17

827-10215

BOLT,Hex, M10 x 1.5 x 215mm, Cl 10.9

1шт.

18

2142046

BOLT,Hex, M10 x 1.5 x 290mm, Cl 10.9

1шт.

19

2700218

SCREW,Hex, M10 x 1.5 x 254mm L, Cl 10.9

1шт.

20

412702

BOLT,Hex, M10 x 1.5 x 260mm, Cl 8.8

1шт.

21

87024930

WASHER,10.8mm ID x 50mm OD x 3mm Thk

6шт.

22

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.
