(10.414.010) - VAR - 391130, 758000, 759041 - FAN, PULLEY, BELT

Запчасти Case IH OPTUM 270 CVT (10.414.010) - VAR - 391130, 758000, 759041 - FAN, PULLEY, BELT (10) - ENGINE

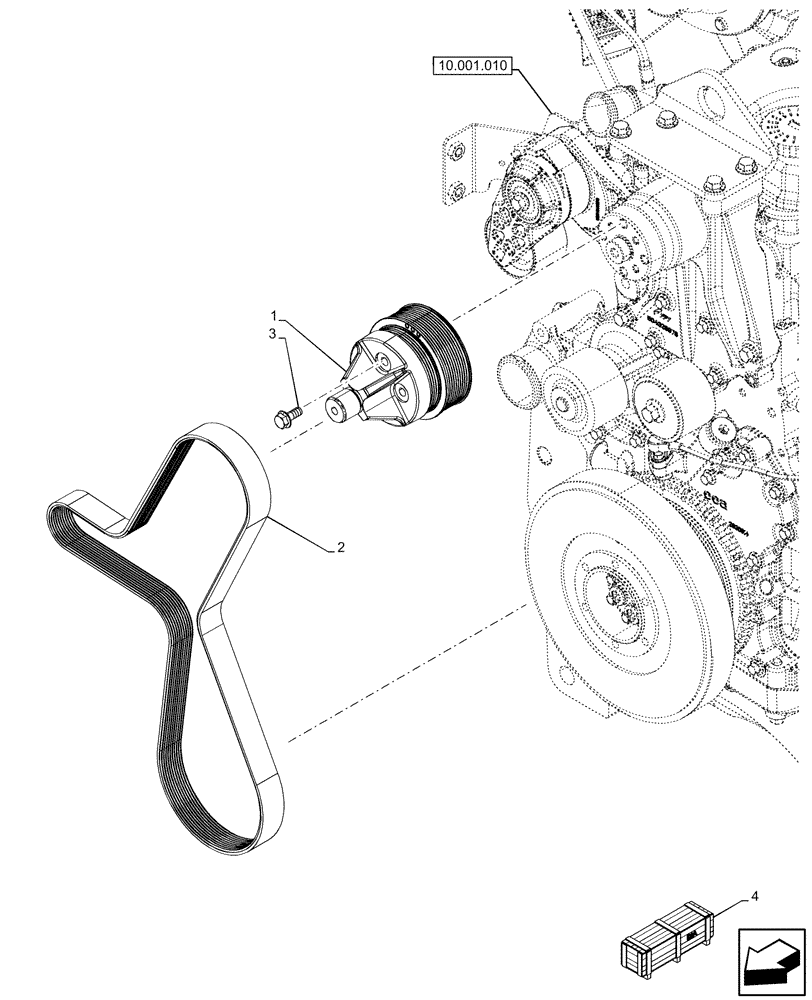

Схема запчастей Case IH OPTUM 270 CVT - (10.414.010) - VAR - 391130, 758000, 759041 - FAN, PULLEY, BELT (10) - ENGINE
10.001.010
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47917269

SHROUD

Fan Reversible

1шт.

2

47531260

BELT,35.5mm W x 1696mm L, 10 Ribs

Poly V

1шт.

3

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

4

719241054

DIA KIT, TRACTOR

Reversible Fan CCM HD, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
