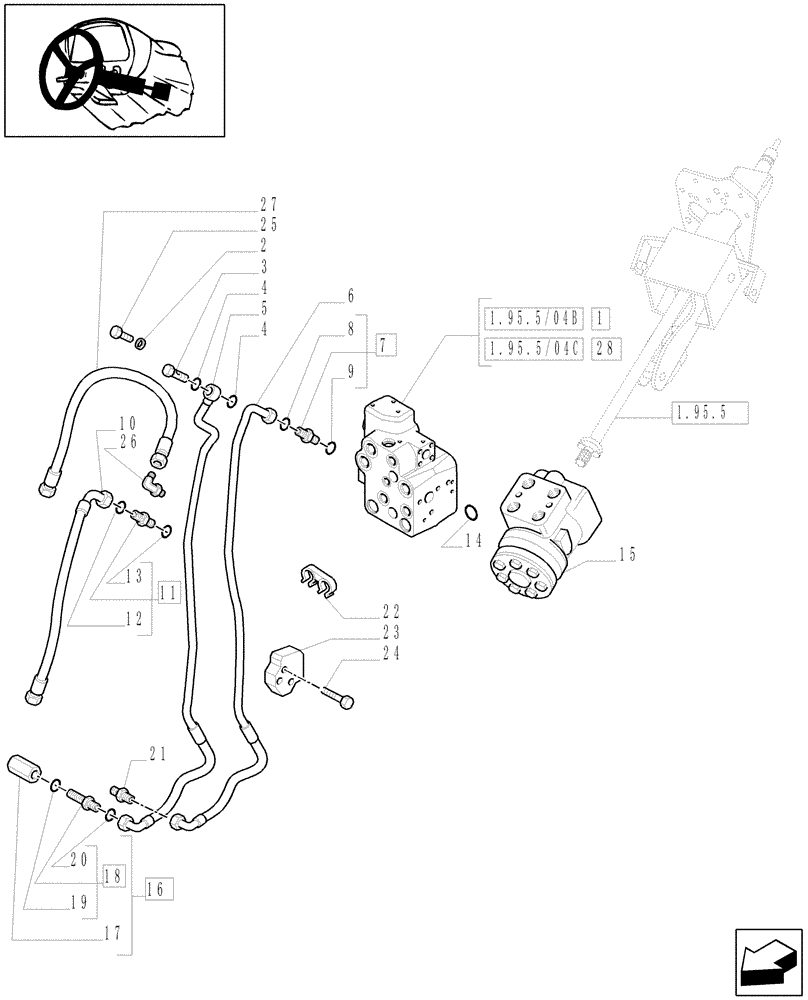

Запчасти Case IH MXU135 (1.95.5/04[03]) - (VAR.360-636) FAST STEERING - POWER STEERING, VALVE AND PIPES (10) - OPERATORS PLATFORM/CAB

1

47128862

HYDRAULIC VALVE

ASSY, Serial Range: -C5420

1шт.

2

10569471

LOCK WASHER,Lock, 3/8"

2шт.

3

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18 x 1.5 x 34

1шт.

4

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

5

82035852

HYD TUBE

FEED, 1"-14, Serial Range: -C5116

1шт.

5

87323099

HYD TUBE

, Start Serial: D5116

1шт.

6

82035851

HYD TUBE

RETURN, 1"-14, 13/16"-16

1шт.

7

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

1"14, M18X1,5

1шт.

8

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

90 Duro

1шт.

9

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

15.7 x 20.9 x 1.5

1шт.

10

82035847

FLEXIBLE HOSE,9.53mm ID x 540mm L, SAE 100R2

11/16"-16, MM.540, Serial Range: -C5116

2шт.

11

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

11/16"-16, M14X1,5, Serial Range: -C5116

2шт.

12

89993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

, Serial Range: -C5116

2шт.

13

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

, Serial Range: -C5116

2шт.

14

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

4шт.

15

87303173

HYDRAULIC STEERING

2WD

1шт.

15

87303174

HYDRAULIC STEERING

4WD

1шт.

16

47135865

HYD CONNECTOR

1шт.

17

47131248

HYD CONNECTOR

1шт.

18

47135868

HYD CONNECTOR

1"14, M27X2

1шт.

19

14438185

O-RING,24mm ID x 3mm

1шт.

20

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

21

82030315

HYD CONNECTOR

1"14, 13/16"-16

1шт.

22

82035888

CLIP,16mm

1шт.

23

82036781

INSULATOR

1шт.

24

14305324

HEX SOC SCREW,M6 x 20mm, Cl 8.8

2шт.

25

47131084

SCREW,Hex Socket, M10 x 1 x 90.00mm

M10x1x90

1шт.

26

87319921

HYD CONNECTOR

, Start Serial: D5116

2шт.

27

87319929

FLEXIBLE HOSE,500.00mm

, Start Serial: D5116

2шт.

28

87525763

HYDRAULIC VALVE

, Start Serial: D5420

1шт.
