Запчасти Case IH MXU135 (1.91.4[08]) - AIR HEATER AND RELAY CABLES - W/CAB (10) - OPERATORS PLATFORM/CAB

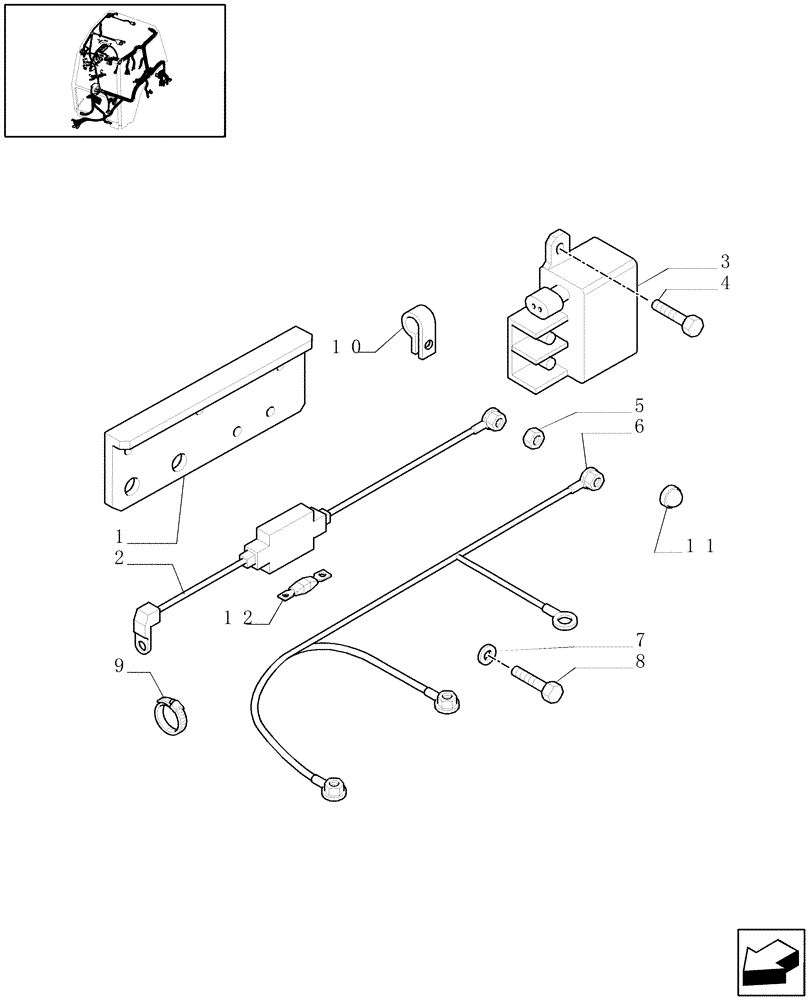

Схема запчастей Case IH MXU135 - (1.91.4[08]) - AIR HEATER AND RELAY CABLES - W/CAB (10) - OPERATORS PLATFORM/CAB
1
6
4
9
3
8
7
5
10
11
12
2

Артикул

Название

Примечание

Количество

1

82034486

BRACKET

1шт.

2

82036889

WIRE HARNESS

GRID HEATER, Incl.12

1шт.

3

82022813

RELAY,12V, High Current

1шт.

4

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

2шт.

5

15896211

NUT,M6, Cl 8

1шт.

6

82036465

WIRE HARNESS,500mm L

MXU110, GRID HEATER POWER

1шт.

6

82036464

ELECTRIC CABLE,650mm L

MXU125, MXU135, GRID HEATER POWER

1шт.

7

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

8

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

9

82013031

CABLE TIE,193mm L

CABLE STRAP

2шт.

10

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1.14 MM

1шт.

11

87533425

COVER,M6

4шт.

12

11056290

FUSE,125A, Maxi

1шт.

Выбрано товаров: 13
