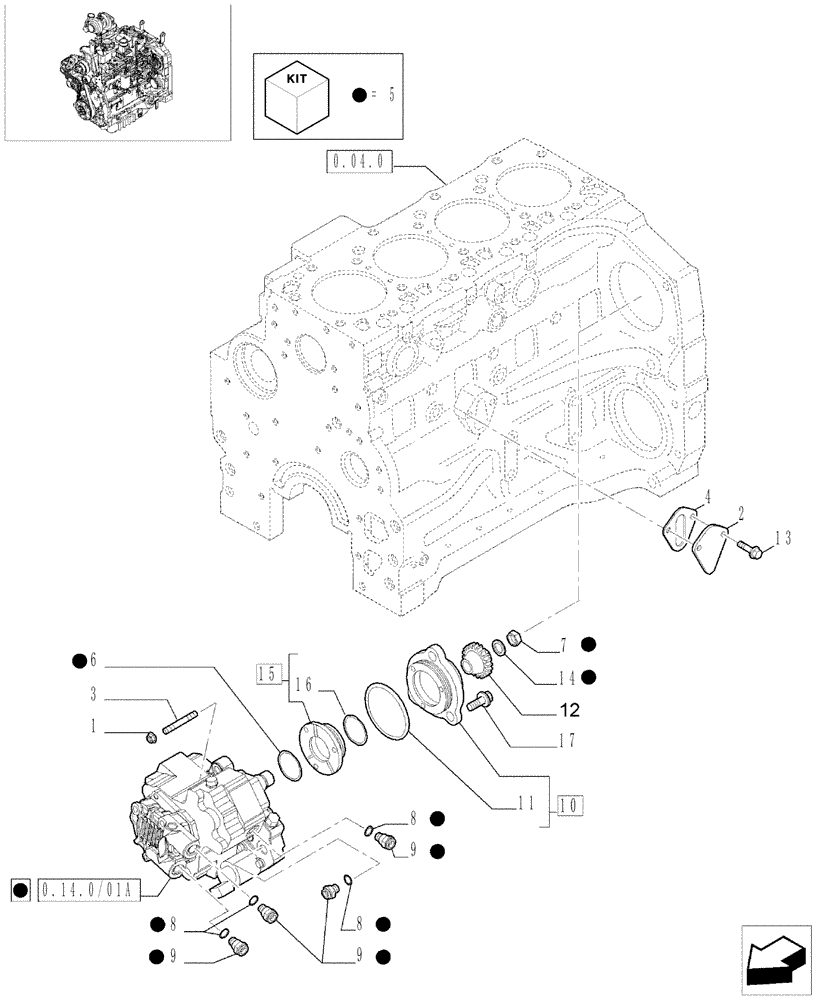

Запчасти Case IH MXU135 (0.14.0/03[01]) - INJECTION PUMP (01) - ENGINE

1

17044731

FLANGE NUT,Hex, M8 x 1.25, Cl 10

3шт.

2

4896952

COVER

1шт.

3

4892831

STUD

M8X1,25X50

3шт.

4

4890700

GASKET,1.21mm Thk

1шт.

5

4898921

FUEL INJECTION PUMP

ASSY

1шт.

84385110R

REMAN-INJECTION PUMP

MXU125, MXU135, Both CASE IH TRACTOR (7/03-), Reman for New P/N 4898921

1шт.

84385110C

CORE-INJECTION PUMP

Return Number

1шт.

*

w/ Eng. P/N 87357552 Or 87802394 Tier 2, N.A. Only

1шт.

5

4898921R

REMAN-INJECTION PUMP

MXU125, For Use w/ Eng. P/N 87357433 Or 87802390 Tier 2, MXU135, For Use

1шт.

5

4898921C

CORE-INJECTION PUMP

Return Number

1шт.

6

4890088

O-RING,44mm ID x 3mm Width

1шт.

7

4890634

NUT,Hex, M18 x 1.5, RH

M18 x 1.5

1шт.

8

93156604

GASKET

4шт.

9

4893962

QUICK MALE COUPLING,M12 x 1.5

4шт.

10

2830598

BEARING COVER

ASSY

1шт.

11

4897111

O-RING,0.139" Thk x 4.719" ID

1шт.

12

4896138

DRIVEN GEAR,27T

1шт.

13

4899146

SCREW,Hex Flg, M8 x 1.25 x 20

2шт.

14

17095814

WASHER

1шт.

15

2830564

SPACER

ASSY

1шт.

16

17290581

O-RING,72.62mm ID x 2.34mm Width

2шт.

17

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

3шт.
