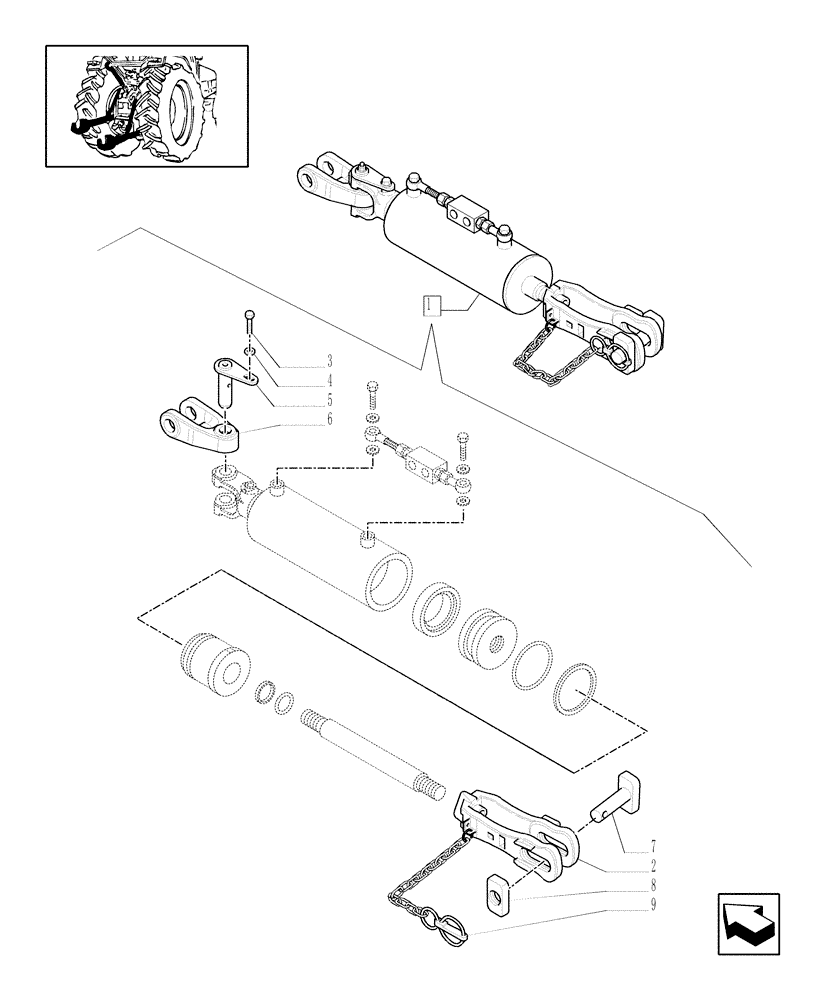

Запчасти Case IH MXU135 (1.89.6/09B) - (VAR.484-790) ADJUSTABLE LIFT-ROD, PARTS (09) - IMPLEMENT LIFT

1

47134361

LIFT LINK

RH

1шт.

2

5198070

YOKE,M33 x 3

1шт.

3

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

4

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

5

47130642

PIN,25mm OD x 92mm L

1шт.

6

47130648

YOKE,28mm D x 25mm D

1шт.

7

47133610

PIN,26mm OD x 110mm L

2шт.

8

47133611

THRUST WASHER

2шт.

9

47125579

LINCH PIN,11.5mm OD

ROLL PIN

2шт.
