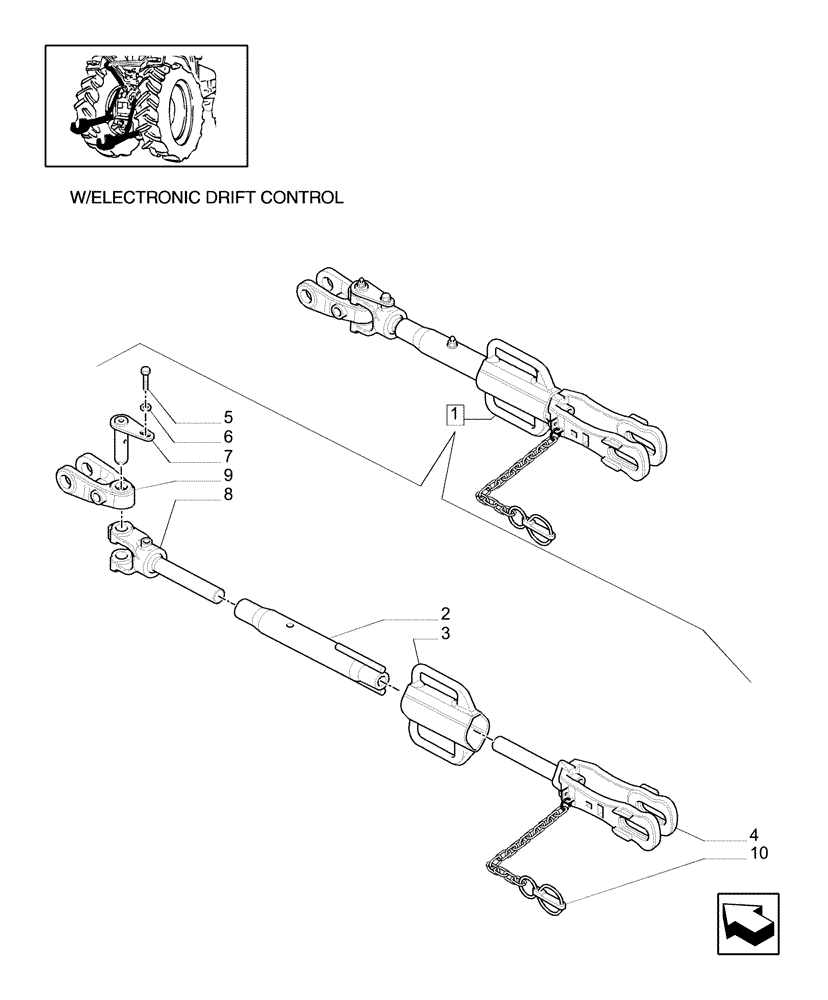

Запчасти Case IH MXU135 (1.89.6/02C) - IMPLEMENT LINKAGE DEVICE WITH TELESCOPIC ARMS - ADJUSTABLE LIFT-ROD (09) - IMPLEMENT LIFT

1

47133835

TIE-ROD

ASSY, RH, CAT.2/3

1шт.

1

47133836

TIE-ROD

ASSY, LH, CAT.2/3

1шт.

2

47125893

TUBE,M30 x 3

1шт.

3

5198072

HANDLE

1шт.

4

5198070

YOKE,M33 x 3

1шт.

5

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

6

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

7

47130642

PIN,25mm OD x 92mm L

1шт.

8

47130836

TIE-ROD,M33 x 3

1шт.

9

47130648

YOKE,28mm D x 25mm D

1шт.

10

47133914

LINCH PIN

1шт.
