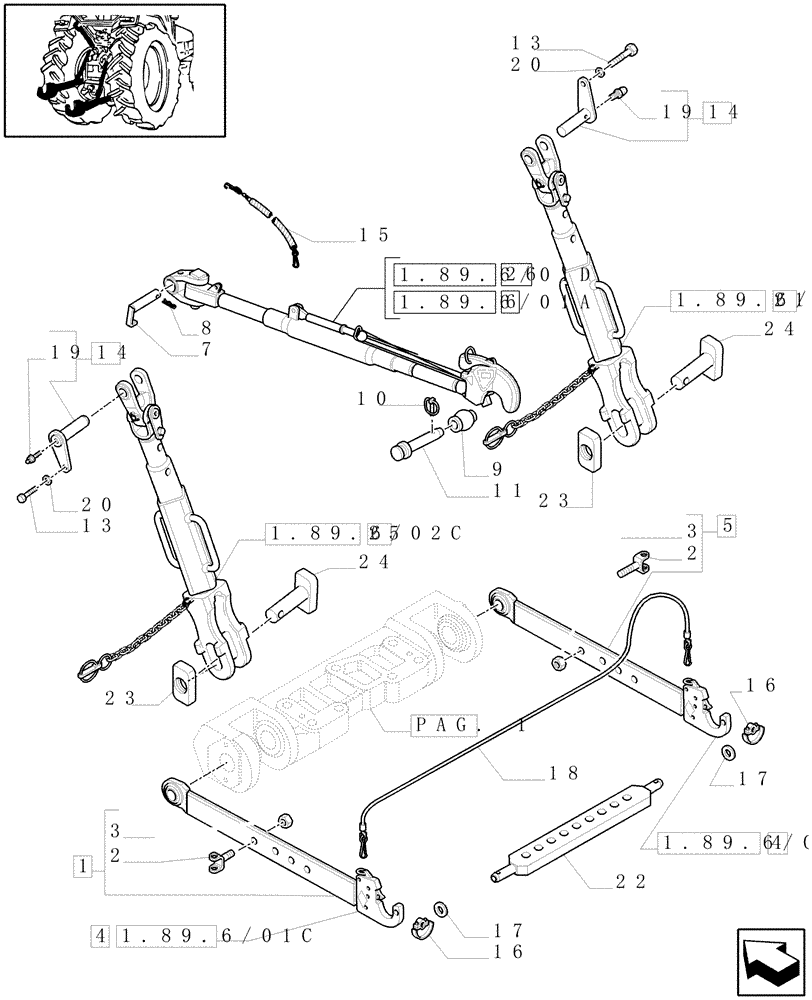

Запчасти Case IH MXU135 (1.89.6/01[02A]) - TOOLING CONNECTION UNIT - D5300 (09) - IMPLEMENT LIFT

1

47125179

LIFT LINK

LH, CAT.2/3

1шт.

2

5190955

YOKE,M24 x 2

2шт.

3

12164514

NUT,M24 x 2, Cl 8

2шт.

4

5176738

LIFT LINK END ASSY

2шт.

5

47125178

LIFT LINK

RH, CAT.2/3, Incl.4

1шт.

6

47125175

HOOK

CAT.2/3, Serial Range: -C6242

1шт.

7

5191449

PIN,27.9mm OD x 152mm L

1шт.

8

578668

COTTER PIN,10.7mm OD x 80mm L

1шт.

9

5116059

BUSHING,25.4mm ID x 60mm OD x 51mm L

CAT.2

1шт.

9

5116060

BUSHING,32mm ID x 60mm OD x 51mm L

CAT.3

1шт.

10

5166585

LOCK PIN,11mm OD

1шт.

11

822483

PIN,25.5mm OD x 137mm L

CAT.2

1шт.

11

44015196

PIN,31.75mm OD x 146mm L

CAT.3

1шт.

12

47133836

TIE-ROD

LH, CAT.2/3

1шт.

13

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

14

47130642

PIN,25mm OD x 92mm L

2шт.

15

5174402

LINK CHAIN,1500mm L

1шт.

16

5130779

ECCENTRIC,11mm OD, Shaft Diameter 29.00mm

CAT.2

2шт.

16

5130780

ECCENTRIC,15.5mm OD, Shaft Diameter 37.00mm

CAT.3

2шт.

17

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

CAT.3

2шт.

17

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

CAT.2

2шт.

18

5116063

ROPE,4500mm L

1шт.

19

87414

LUBE NIPPLE,1/4" - 28

2шт.

20

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

21

47133835

TIE-ROD

RH, CAT.2/3

1шт.

22

5199253

SUPPORT

(EQUIP.899)

1шт.

23

47133611

THRUST WASHER

2шт.

24

47133610

PIN,26mm OD x 110mm L

2шт.

25

47133836

TIE-ROD

LH, CAT.2/3

1шт.

26

84157355

UPPER LINK

TOP LINK CAT.3, Start Serial: D6242

1шт.
