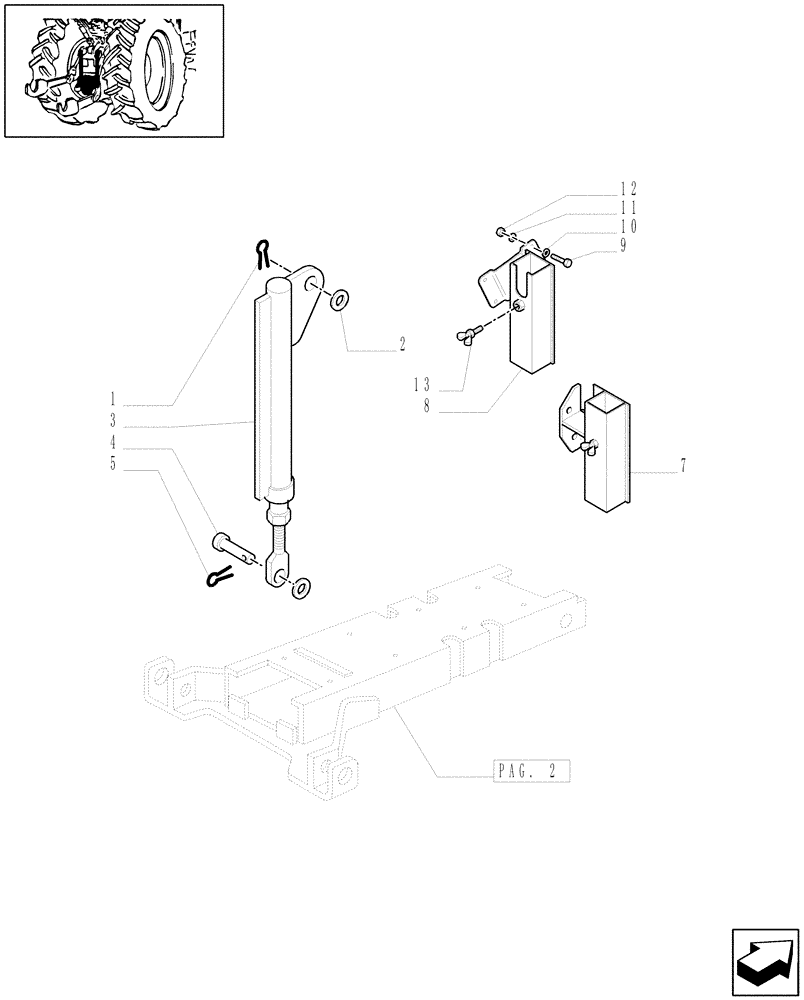

Запчасти Case IH MXU135 (1.89.3/04[03]) - (VAR.559) FRONT HPL AND FRONT PTO WITH SHAFT WITH 6 SPLINES - TOW HOOK (09) - IMPLEMENT LIFT

1

10797801

COTTER PIN,M6.3 x 50.00mm

2шт.

2

14497101

WASHER,M20 x 37 x 3

2шт.

3

82036641

LIFTING ROD

2шт.

4

82036627

PIN,25mm OD x 70mm L

2шт.

5

81868739

COTTER PIN

2шт.

6

83908648

WASHER,25.65mm ID x 46.43mm OD x 3.18mm Thk

2шт.

7

87306655

BRACKET

, Serial Range: -C5350

1шт.

8

87517338

BRACKET

, Start Serial: D5350

1шт.

9

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

, Start Serial: D5350

4шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

, Start Serial: D5350

4шт.

11

83937016

LOCK WASHER,Serr, M8

, Start Serial: D5350

4шт.

12

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

, Start Serial: D5350

4шт.

13

82039554

WING NUT,Screw, M10 x 20.00mm, STL, ZND

, Start Serial: D5350

1шт.
