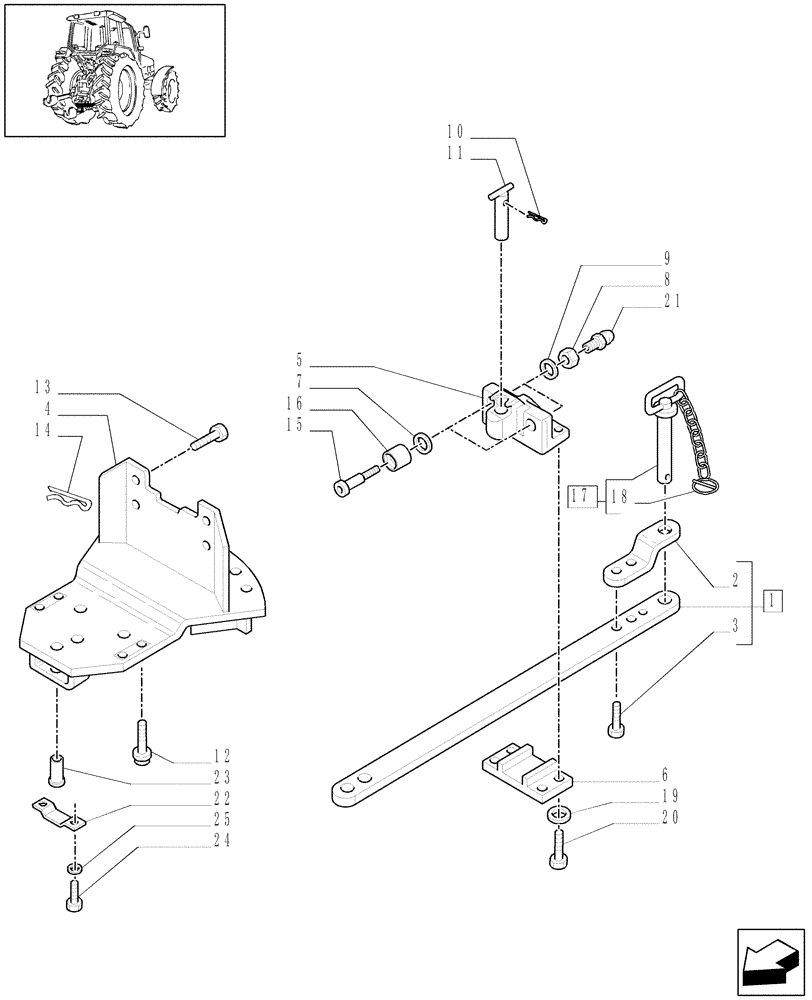

Запчасти Case IH MXU135 (1.89.0/01) - (VAR.910) TOW-BAR WITH ROLLERS (09) - IMPLEMENT LIFT

1

82027971

DRAWBAR

1шт.

2

82026931

SUPPORT,254mm L x 75mm W x 30mm Thk, 70mm Offset

1шт.

3

11125234

SCREW,Hex, M20 x 75mm, Cl 10.9

2шт.

4

82020184

SUPPORT

1шт.

5

87693139

SUPPORT

1шт.

6

82027968

PLATE

1шт.

7

83954373

WASHER,1.11" ID x 1.57" OD x 0.28" Thk

2шт.

8

83927122

NUT,Hex, 3/4"-16, 0.665" High, G5

3/4"-16

2шт.

9

80087340

LOCK WASHER

3/4"

2шт.

10

82029383

PIN,26mm OD x 115.5mm L

1шт.

11

82026318

COTTER PIN,1/8 x 2 5/16

1шт.

12

82020186

BOLT,Flng, M16 x 1.5 x 120mm, Cl 12.9

4шт.

13

15984134

BOLT,Hex, M18 x 1.5 x 45mm, Cl 10.9, Full Thd

4шт.

14

82000094

SPRING,40mm OD x 142mm L

1шт.

15

83954368

BOLT,28.05mm OD x 126.64mm L

2шт.

16

83954370

ROLLER,56.9mm OD x 60.2mm L

2шт.

17

83954379

HITCH PIN

ASSY

1шт.

18

81810439

LOCK PIN,8.13mm OD

1шт.

19

10517274

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

4шт.

20

83918228

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

Cap, HH, G5, 5/8"-11 x 3-1/2"

4шт.

21

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

22

82021060

PLATE

1шт.

23

82027974

PIN

1шт.

24

89707580

SCREW

Cap, HH, G5, 1/4"-20 x 3/4"

2шт.

25

80080682

LOCK WASHER

1/4"

2шт.
