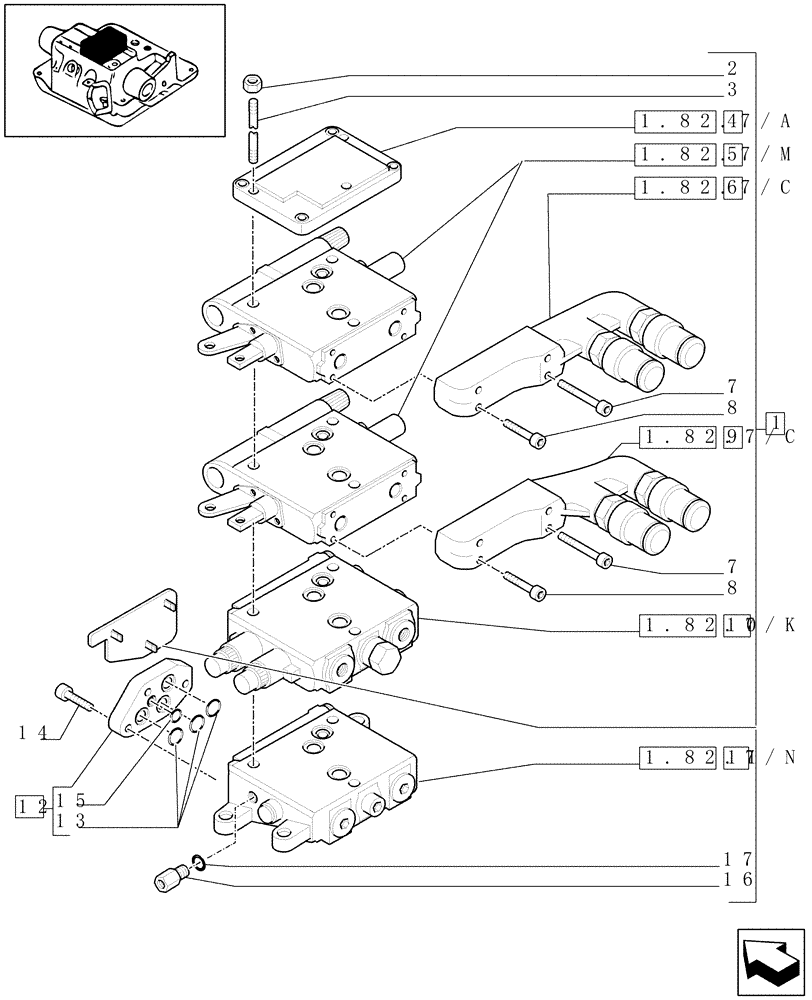

Запчасти Case IH MXU135 (1.82.7/01[04]) - REMOTE VALVE & RELATED PARTS - D5504 (07) - HYDRAULIC SYSTEM

1

87546165

CONTROL VALVE

ASSY

1шт.

2

5195169

NUT,M8

3шт.

3

5195168

TIE-ROD,M8

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

2шт.

87546169R

REMAN-HYD VALVE

MXU135 (7/03-)

2шт.

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

87381963

QUICK MALE COUPLING

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

87546170

CONTROL VALVE

2шт.

84175671R

REMAN-HYD VALVE

MXU135 CASE IH TRACTOR (7/03-) Reman for New P/N 87546170

2шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU135 CASE IH TRACTOR (7/03-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

5199101

COVER

INCL.13,15

1шт.

13

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

14

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

15

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

16

5191704

CHECK VALVE

Incl. 17

1шт.

17

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
