(1.82.7/01[02]) - REMOTE VALVE & RELATED PARTS - C5504

Запчасти Case IH MXU135 (1.82.7/01[02]) - REMOTE VALVE & RELATED PARTS - C5504 (07) - HYDRAULIC SYSTEM

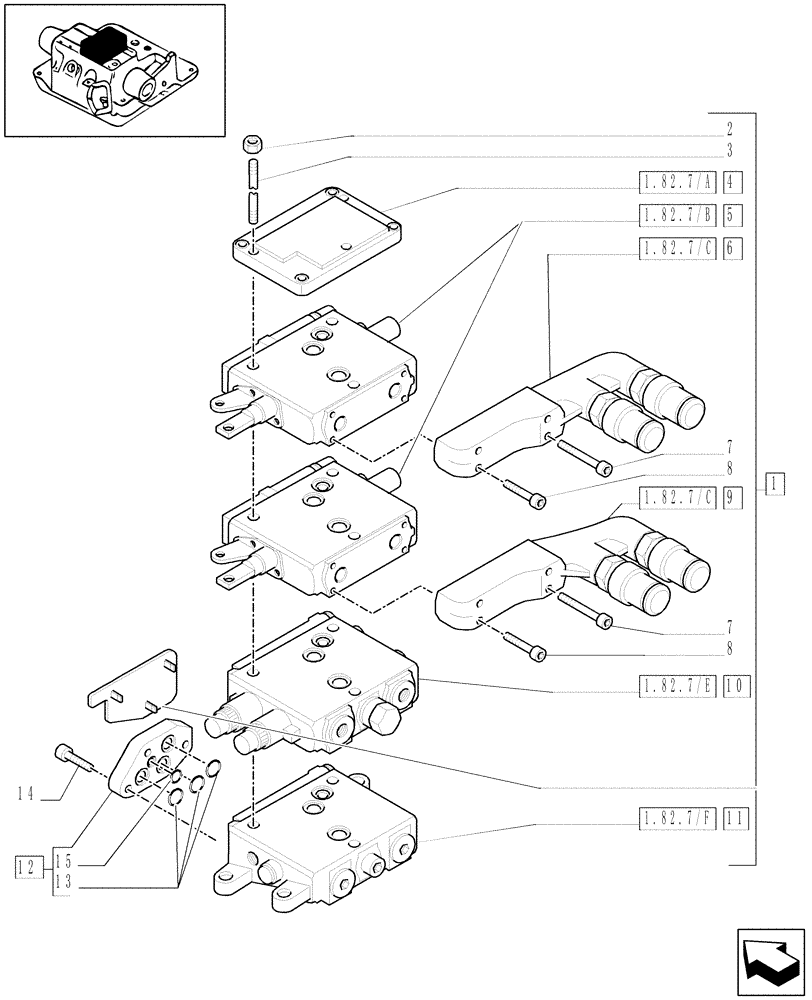

Схема запчастей Case IH MXU135 - (1.82.7/01[02]) - REMOTE VALVE & RELATED PARTS - C5504 (07) - HYDRAULIC SYSTEM
4
1.82.7/b
1.82.7/e
3
1.82.7/c
1.82.7/c
5
2
15
12
7
14
13
11
1
8
8
9
1.82.7/a
7
10
1.82.7/f
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47124664

CONTROL VALVE

ASSY

1шт.

2

16100821

NUT,M8, Cl 10

3шт.

3

5195168

TIE-ROD,M8

3шт.

4

5192188

BODY

1шт.

5

5199099

VALVE

2шт.

6

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

5192187

CONTROL VALVE

2шт.

11

5192184

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU135 CASE IH TRACTOR (7/03-), REMAN FOR NEW P/N 87730706

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

5199101

COVER

INCL.13,15

1шт.

13

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

14

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

15

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.
