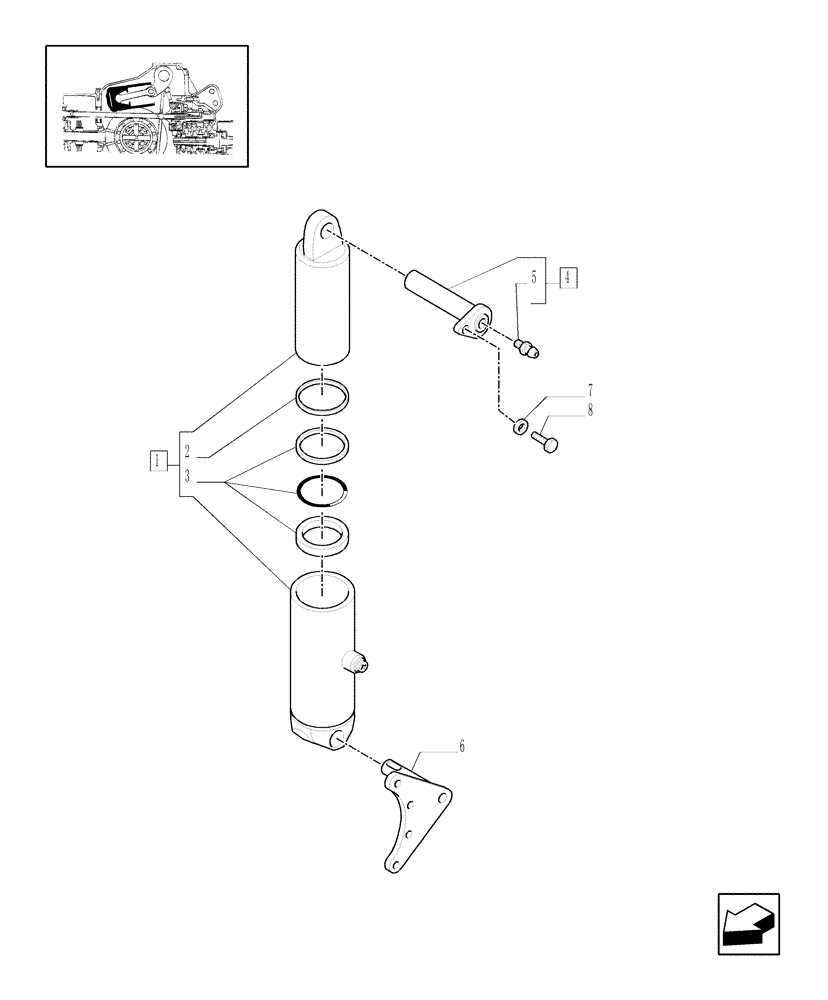

Запчасти Case IH MXU135 (1.82.6[02]) - LIFTING CYLINDERS (07) - HYDRAULIC SYSTEM

1

5188888

LIFT CYLINDER

, Serial Range: -C4870

1шт.

1

47134492

LIFT CYLINDER

, Serial Range: D4870-C5127

1шт.

1

87306504

HYDRAULIC CYLINDER,90mm Rod, 177mm Stroke

, Start Serial: D5127

1шт.

2

5192074

CIRCLIP

, Serial Range: -C5127

1шт.

2

87309025

CIRCLIP

, Start Serial: D5127

1шт.

3

5192070

SEAL KIT

, Serial Range: -C4870

1шт.

3

47134493

SEAL KIT

, Start Serial: D4870

1шт.

4

5190967

PIN,34.7mm OD x 96mm L

2шт.

5

87414

LUBE NIPPLE,1/4" - 28

1шт.

6

5191004

SUPPORT

LH

1шт.

6

5191006

SUPPORT

RH

1шт.

7

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

D=10

2шт.

8

15970674

BOLT,Hex, M10 x 1.25 x 22mm, Cl 12.9, Full Thd

2шт.
