Запчасти Case IH MXU135 (1.82.1/01) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

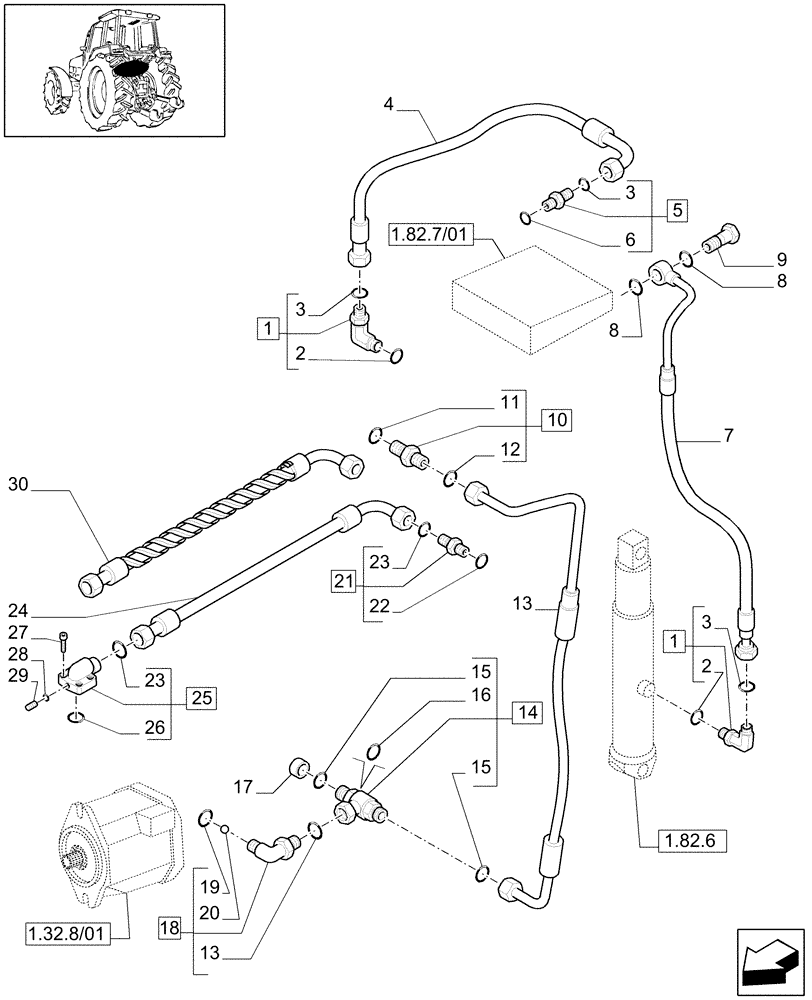

Схема запчастей Case IH MXU135 - (1.82.1/01) - LIFTER, LINES (07) - HYDRAULIC SYSTEM
15
1
14
23
3
16
8
10
20
28
9
7
15
22
25
17
2
11
27
5
19
21
23
18
1.82.7/01
1.82.6
12
1.32.8/01
30
3
13
1
6
29
4
8
24
13
2
3
26

Артикул

Название

Примечание

Количество

1

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

13/16"-16, M18X1,5

2шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

3

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

3шт.

4

47133647

HOSE,13/16"-16 ID x 600mm L

RH

1шт.

5

5196305

UNION

13/16"-16, M22X1,5

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

7

47133648

HOSE,10mm ID x 425mm L

LH

1шт.

8

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

2шт.

9

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

10

5185045

HYD CONNECTOR

9/16"-18, M12X1,5

1шт.

11

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

2шт.

12

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

13

47135605

FLEXIBLE HOSE

9/16"-18

1шт.

14

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

15

89825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

16

80165202

O-RING

2шт.

17

5189973

PLUG

9/16"-18

1шт.

18

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

9/16"-18, 7/16"-20, Serial Range: -C5082

1шт.

18

47135296

90 ELBOW,9/16"-18 x 7/16"-20

, Start Serial: D5082

1шт.

19

5185507

O-RING,8.92mm ID x 1.83mm Width

M8.92 ID x 1.83 Thk, Serial Range: -C5082

1шт.

19

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

, Start Serial: D5082

1шт.

20

47126655

FILTER STRAINER

, Serial Range: -C5082

1шт.

21

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

1-3/16"-12, M27 x 2

1шт.

22

14438185

O-RING,24mm ID x 3mm

1шт.

23

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

24

47128470

FLEXIBLE HOSE

1-13/16"-12, Serial Range: -C5151

1шт.

25

47130523

FLANGE

1шт.

26

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

1шт.

27

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

28

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

29

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

30

87312959

FLEXIBLE HOSE,16mm ID x 540mm L, SAE 100R16

560MM, Start Serial: D5151

1шт.
