Запчасти Case IH MXU135 (1.81.9/02[04]) - (VAR.502-538-547-548) FRONT HYDRAULIC LIFT LESS FRONT POWER TAKE-OFF - VALVE AND PIPES (07) - HYDRAULIC SYSTEM

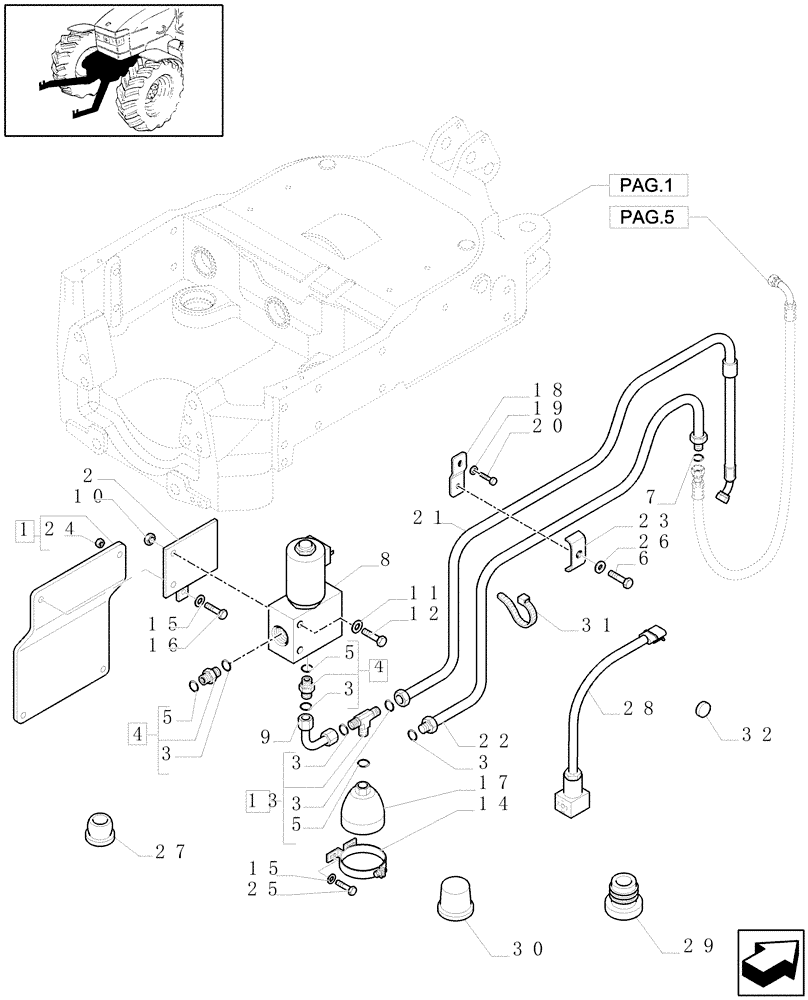

Схема запчастей Case IH MXU135 - (1.81.9/02[04]) - (VAR.502-538-547-548) FRONT HYDRAULIC LIFT LESS FRONT POWER TAKE-OFF - VALVE AND PIPES (07) - HYDRAULIC SYSTEM
21
3
5
3
13
8
3
16
19
12
3
9
25
24
3
1
11
31
28
6
29
15
10
14
7
32
5
20
2
27
26
30
22
5
18
4
23
4
15
17

Артикул

Название

Примечание

Количество

1

47057232

SUPPORT

1шт.

2

47057439

SUPPORT

1шт.

W/VAR. 502-538 only

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

4

5185524

HYD CONNECTOR

1"-14, G1/2"-14

2шт.

W/VAR. 502-538 only

1шт.

5

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

8

5141295

SOLENOID VALVE

1шт.

W/VAR. 502-538 only

1шт.

9

47057659

HYD TUBE

1"-14

1шт.

W/VAR. 502-538 only

1шт.

10

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

W/VAR. 502-538 only

1шт.

11

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

2шт.

W/VAR. 502-538 only

1шт.

12

10903724

BOLT,M6 x 55, 8.8

2шт.

W/VAR. 502-538 only

1шт.

13

47057674

TEE

1"-14, 1/2"

1шт.

14

47057603

CLAMP,119mm - 127mm

1шт.

15

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

16

16043531

SCREW,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd

4шт.

17

47057602

ACCUMULATOR,0.75L

1шт.

18

47057070

CLAMP BRACKET

1шт.

19

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

1шт.

20

11121321

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

M20x2.5x35

1шт.

21

47057653

HYD TUBE

1"-14,13/16"-16

1шт.

22

47057723

HYD TUBE

1"-14,13/16"-16, Incl. 3,7

1шт.

23

47057074

CLAMP,48.6mm x 30mm

2шт.

24

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

25

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

26

10516674

LOCK WASHER,M8

2шт.

W/VAR. 538-448 only

1шт.

27

87523187

PLUG,M12 x 1.5

M12x1.5, Start Serial: D5365

2шт.

28

47133195

WIRE HARNESS

, Start Serial: D5365

1шт.

29

83908579

PLUG,M7.62

, Start Serial: D5365

2шт.

30

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

, Start Serial: D5365

16шт.

31

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP, Start Serial: D5365

4шт.

32

82037171

PLASTIC PLUG,22.00mm, 32.00mm OD

, Start Serial: D5365

4шт.

Выбрано товаров: 40
