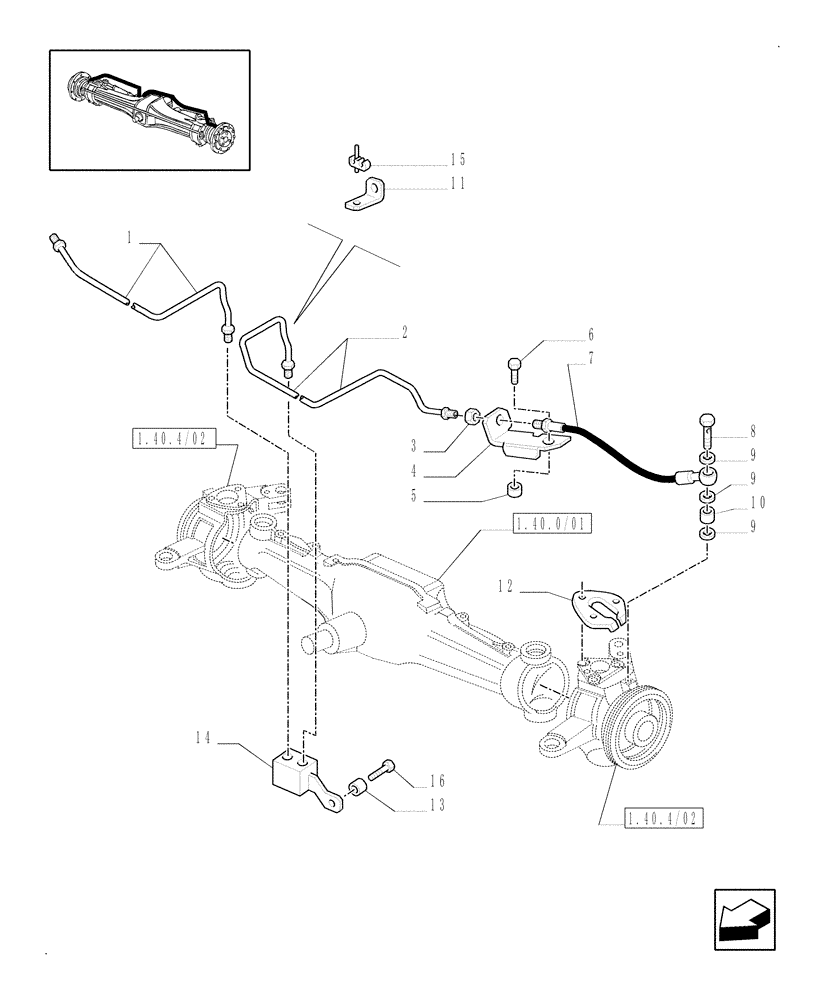

Запчасти Case IH MXU135 (1.40.4/14[02]) - (VAR.309/1-359/1) 4WD FRONT AXLE WITH SUSPENSIONS WITH TERRALOCK - BRAKES- BRAKES (04) - FRONT AXLE & STEERING

1

5198332

TUBE

RH, MXU100,MXU110,MXU115 (VAR. 309/1)

1шт.

1

5198336

TUBE

RH, (VAR. 359/1)

1шт.

2

5198331

TUBE

LH, MXU100,MXU110,MXU115 (VAR. 309/1)

1шт.

2

5198335

TUBE

LH, (VAR. 359/1)

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

4

47123154

BRACKET

LH

1шт.

4

47123155

BRACKET

RH

1шт.

5

5184935

SPACER,13mm ID x 25mm OD x 20mm L

1шт.

6

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

L=MM.295

2шт.

8

5184961

BANJO BOLT

M12 x 1.25 x 36

2шт.

9

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

4шт.

10

5184934

SPACER

2шт.

11

5179180

BRACKET

1шт.

12

5183735

PLATE

M12X1,25X45

2шт.

13

47127963

SPACER

20X18X22

1шт.

14

5198333

BRACKET

1шт.

15

14575380

CLIP,4.8mm ID

1шт.

16

15981334

BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9

1шт.
