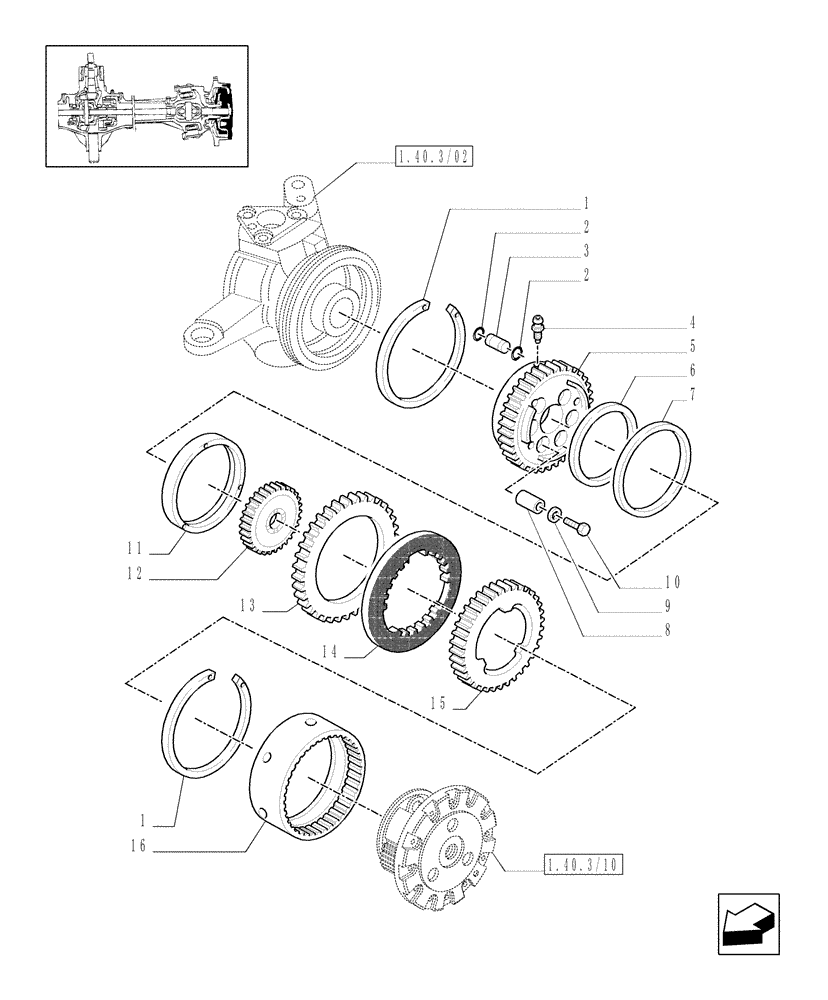

Запчасти Case IH MXU135 (1.40.3/14[01]) - (VAR.309-359) 4WD FRONT AXLE WITH BRAKES WITH TERRALOCK - BRAKES (04) - FRONT AXLE & STEERING

1

5175606

RING

4шт.

2

14456981

O-RING,0.424" ID x 0.103" Width

4шт.

3

5173504

PAWL,16mm OD x 25mm L

2шт.

4

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

5

5190527

HOUSING

2шт.

6

5177912

SEAL,Square, 3.4mm Thk x 143.6mm ID, 80 Duro

143,6X150,4X3,4

2шт.

7

5171919

SEAL,Square, 3.4mm Thk x 193.6mm ID, 80 Duro

193.6 x 200.4 x 3.4

2шт.

8

5179554

BUSHING,14.5mm ID x 22mm OD x 27.8mm L

12шт.

9

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

12шт.

10

16331930

BOLT,Hex, M14 x 1.5 x 55mm

12шт.

11

5190528

PISTON

2шт.

12

5178475

HUB

2шт.

13

5171917

BRAKE DISC,150mm ID x 227mm OD x 4.95mm Thk

2шт.

14

5175567

BRAKE DISC,213.00mm OD

2шт.

15

5181748

WEAR PLATE,68T

2шт.

16

5191771

RING GEAR,248.00mm OD

OD = 248 mm

2шт.
