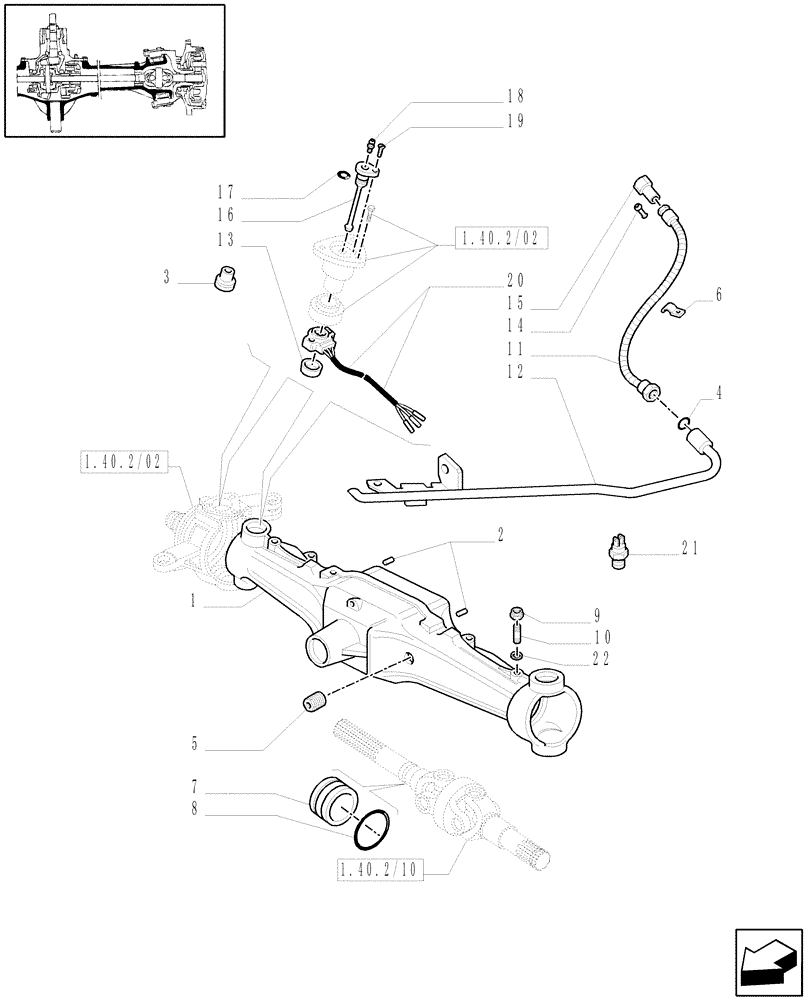

Запчасти Case IH MXU135 (1.40.2/01[02]) - (VAR.358/1) 4WD FRONT AXLE WITH SUSPENSIONS AND TERRALOCK - BOX (04) - FRONT AXLE & STEERING

1

47126902

AXLE HOUSING

, Serial Range: -C5196

1шт.

1

87309183

AXLE HOUSING

Incl.2, Start Serial: D5196

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

5175211

BUSHING,10mm ID x 23mm OD x 17mm L

, Serial Range: -C5196

1шт.

4

14452780

O-RING,0.239" ID x 0.07" Width

1шт.

5

14326211

PLUG,M22 x 1.50, R50, ZND

Magnetic

2шт.

6

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

7

5164362

BUSHING

, Serial Range: -C5243

2шт.

7

87371254

BUSHING,68mm ID x 85mm OD x 45mm L

, Start Serial: D5243

2шт.

8

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

80 x 2.62, Serial Range: -C5243

2шт.

8

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

, Start Serial: D5243

2шт.

9

16101524

NUT,M12 x 1.25, Cl 10

2шт.

10

87309002

SET SCREW

M12X1,5X67

2шт.

11

82016109

FLEXIBLE SHEATH

1шт.

12

5198054

SHIELD

1шт.

13

5168958

SUPPORT

, Serial Range: -C5196

1шт.

14

82918419

PLUG

1шт.

15

82918426

ELEC CONNECTOR,Female

1шт.

16

5191230

PIN

, Serial Range: -C5196

1шт.

17

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

, Serial Range: -C5196

1шт.

18

13406811

LUBE NIPPLE,45 Degree, 1/4" NPT x .81" lg

, Serial Range: -C5196

1шт.

19

10384911

SCREW,Slotted Countersunk, M5 x 12mm

M5 x 12, Serial Range: -C5196

1шт.

20

82019691

SENSOR

Steering Angle, Serial Range: -C5196

1шт.

21

5115055

SWITCH ASSY

Trans. Oil

1шт.

22

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.
