Запчасти Case IH MXU135 (1.32.8/01[04]) - 4WD DIFFERENTIAL LOCKS PIPES (03) - TRANSMISSION

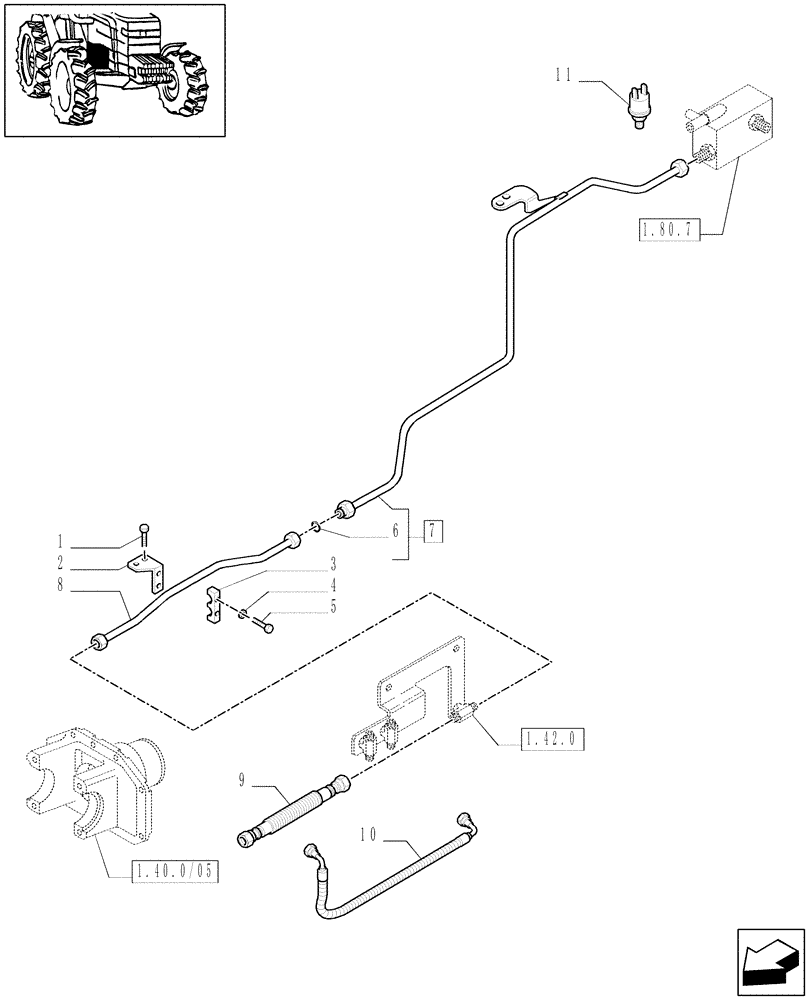

Схема запчастей Case IH MXU135 - (1.32.8/01[04]) - 4WD DIFFERENTIAL LOCKS PIPES (03) - TRANSMISSION
1.42.0
1.80.7
11
10
6
1.40.0/05
7
4
3
2
9
1
5
8

Артикул

Название

Примечание

Количество

1

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

2

82030546

BRACKET

1шт.

3

82029228

CLAMP,2 Hoses

1шт.

4

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

5

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

6

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

7

87561351

RIGID TUBE,10 mm OD

11/16"-16

1шт.

8

82029215

HYD TUBE

11/16"-16

1шт.

9

82029260

FLEXIBLE HOSE

11/16"-16, 3/4"-16UNF, MM.470

1шт.

10

82036783

FLEXIBLE HOSE,9.53mm ID x 580mm L, SAE 100R2

MM.580

1шт.

4WD Axle With Suspension, With Terralock, VAR.301/1 - 309/1 - 358/1 - 359/1

1шт.

11

82008236

SWITCH ASSY

Trans. Oil, 51 mm L.

1шт.

Выбрано товаров: 12
