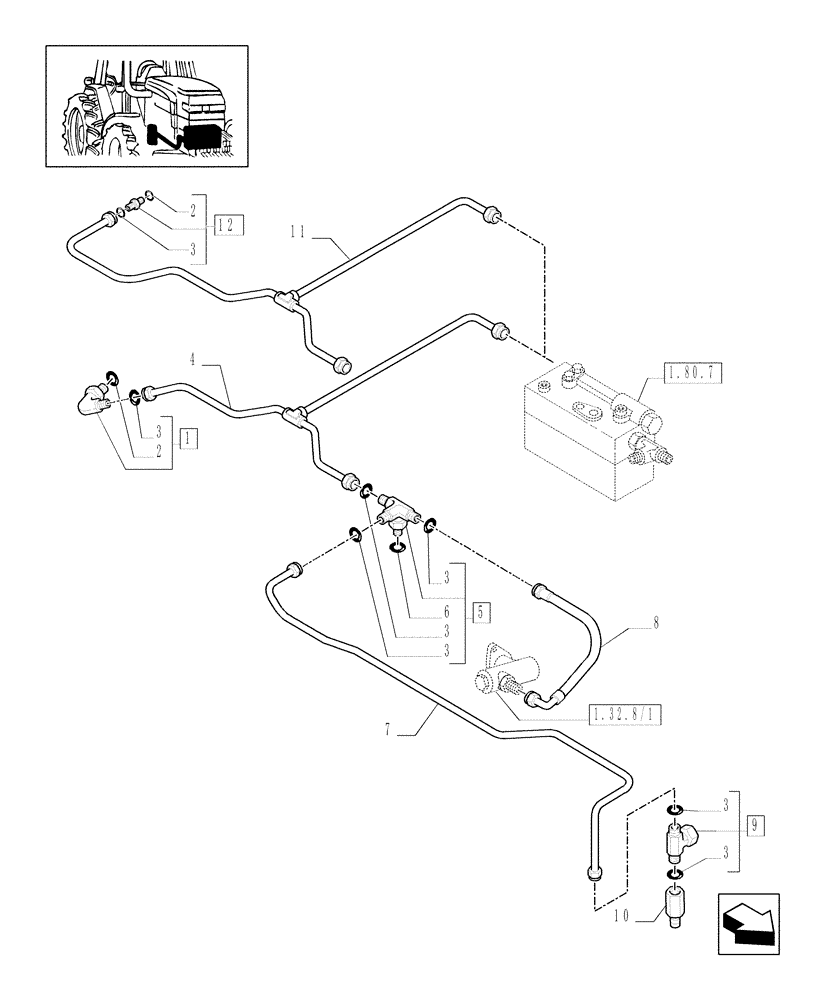

Запчасти Case IH MXU135 (1.29.7[04]) - GEARBOX LUBRICATION PIPING (03) - TRANSMISSION

1

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

13/16"-16, M18X1,5, Serial Range: -C5089

1шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

3

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

6шт.

4

47134004

HYD TUBE

13/16"-16, Serial Range: -C5089

1шт.

5

47132978

TEE

13/16"-16, M12X1,5

1шт.

6

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

7

47130615

HYD TUBE

13/16"-16

1шт.

8

47125838

FLEXIBLE HOSE

13/16"-16

1шт.

9

5194071

TEE

13/16"-16

1шт.

10

47131972

ADAPTER

1шт.

11

87310107

HYD TUBE

13/16''-16, Start Serial: D5089

1шт.

12

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

13/16''-16, Start Serial: D5089

1шт.
