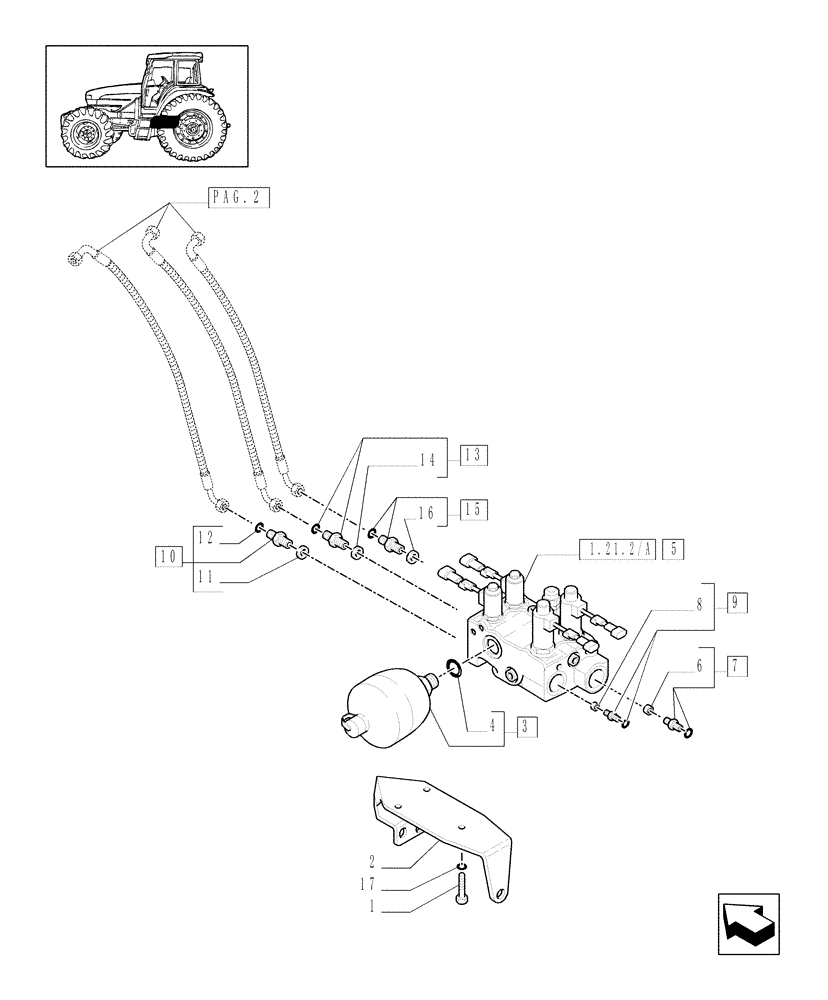

Запчасти Case IH MXU135 (1.21.2/01[01]) - (VAR.309/1-359/1) 4WD FRONT AXLE WITH SUSPENS. WITH TERRALOCK, BRAKES - SUSPENSION CONTROL VALVE (03) - TRANSMISSION

1

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

2

5198490

SUPPORT

1шт.

3

82025705

ACCUMULATOR

1шт.

4

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

5

5197683

HYDRAULIC VALVE

, Serial Range: -C4863

1шт.

47135723R

REMAN-HYD VALVE

MXU135,MXU100,MXU115,MXU125 ALL SERIAL RANGE: -C4863 (7/03-), Reman For New P/N 5197683

1шт.

47135723C

CORE-VALVE HYD

Return Number

1шт.

5

47135723

HYDRAULIC VALVE

, Start Serial: D4863

1шт.

47135723R

REMAN-HYD VALVE

MXU100,MXU115,MXU135,MXU125 ALL START SERIAL: D4863 (7/03-)

1шт.

47135723C

CORE-VALVE HYD

Return Number

1шт.

6

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

47125482

HYD CONNECTOR

M27X2, 1-14

1шт.

8

89991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

82019639

HYD CONNECTOR

M27X2, 1-3/16-12

1шт.

10

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

9/16"-18 UN-2A/M10 x 1

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

13

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

M14X1,5, 11/16-16

1шт.

14

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

1шт.

15

82019684

HYD CONNECTOR,13/16-16 ORFS x M16 x 1.5 ORB

M16X1,5, 13/16-16

1шт.

16

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

12605671

LOCK WASHER,Int Tooth, M10

3шт.
