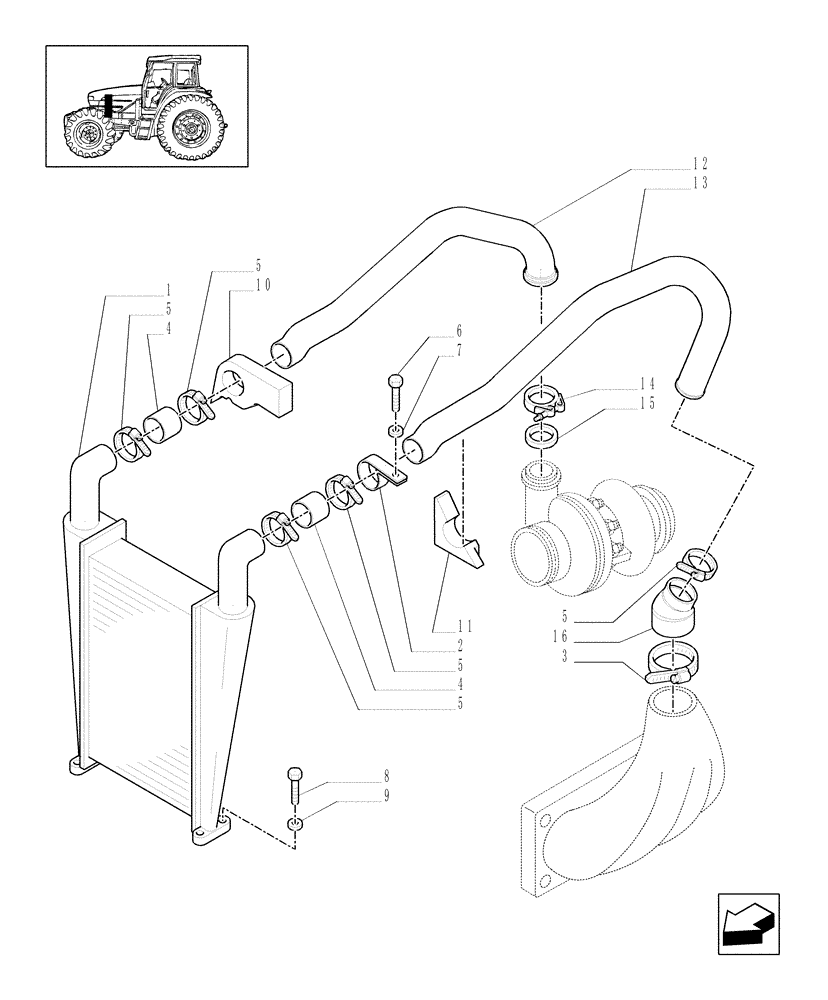

Запчасти Case IH MXU135 (1.19.6/03) - INTERCOOLER AND PIPES (02) - ENGINE EQUIPMENT

1

82031933

INTERCOOLER

1шт.

2

82024188

CLAMP

1шт.

3

82036354

HOSE CLAMP,70mm - 90mm

1шт.

4

82021470

HOSE,57.10 mm ID x 65.00 mm

2шт.

5

82036351

HOSE CLAMP,50 - 70mm X 14.5mm

5шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

8

11107021

BOLT,Hex, M10 x 45mm, Cl 8.8

4шт.

9

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

10

87325639

SEAL

1шт.

11

82027368

SEAL

1шт.

12

82034285

TUBE

4шт.

13

82025958

TUBE

1шт.

14

82033571

CLAMP,76mm

1шт.

14

87524288

CLAMP,77mm

1шт.

15

14460081

SEALING RING,-142, Cl 7, 2.362" ID x .103" Thk

SEALRING

1шт.

16

82034741

INTAKE AIR HOSE,57.10 mm ID, 76.00 mm ID x 94.00 mm, SAE J20R4 CLASS C

1шт.
