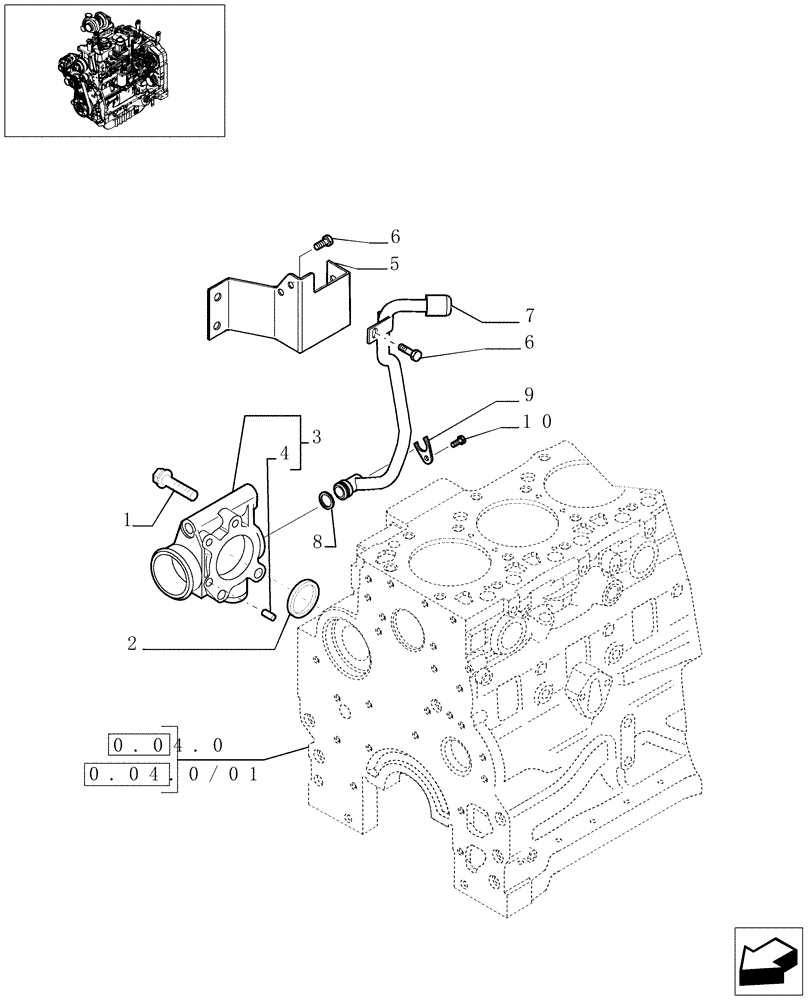

Запчасти Case IH MXU130 (0.32.3) - ENGINE COOLING SYSTEM PIPING (01) - ENGINE

1

4895174

SCREW,Flg Hd, M10 x 1.5 x 65

3шт.

2

4895121

GASKET

1шт.

3

2831186

SUPPORT

1шт.

4

2830894

DOWEL,.25" OD x .625" L

2шт.

5

2853561

BRACKET

1шт.

6

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

4шт.

7

2853999

PIPE ASSY.

1шт.

8

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

9

2853564

BRACKET

1шт.

10

2854000

SELF-TAP SCREW,Hex, M6 x 16mm

1шт.
