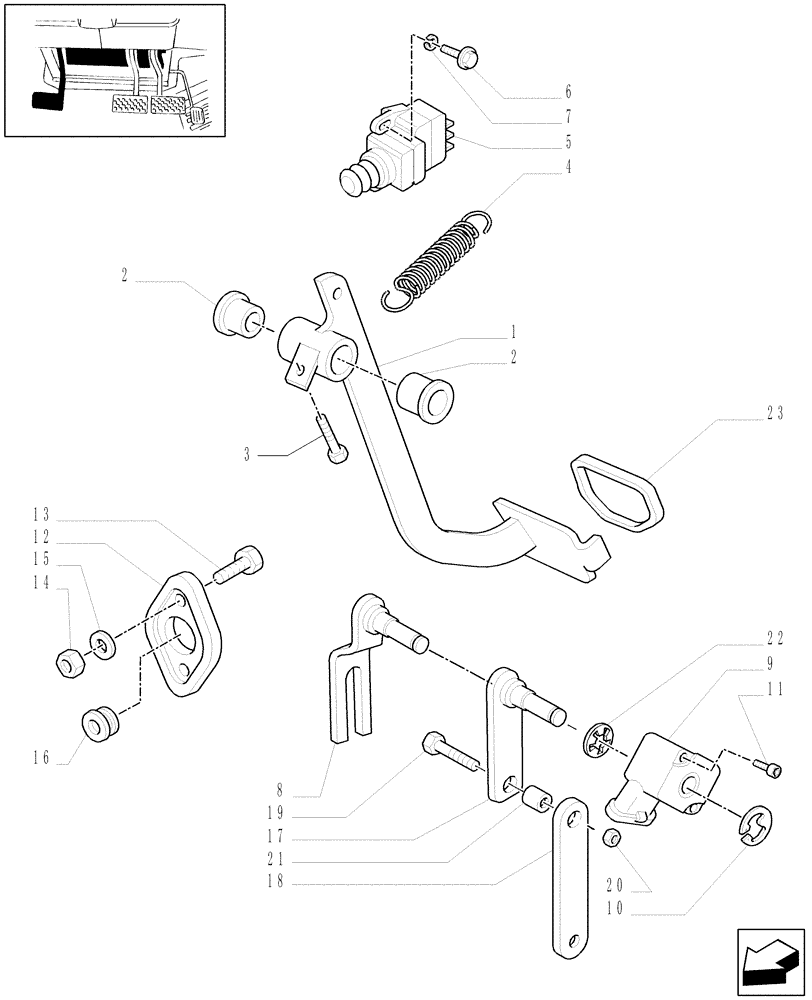

Запчасти Case IH MXU130 (1.95.2) - CLUTCH PEDAL (10) - OPERATORS PLATFORM/CAB

1

87566902

PEDAL

Incl. 2, 3, 23

1шт.

2

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

2шт.

3

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

4

81863741

SPRING

1шт.

5

82026949

PUSH BUTTON SWITCH

Brake

1шт.

6

83963569

CAPTIVE WASHER SCREW,Pan Hd, M4 x 12mm, Cl 4.8

2шт.

7

14496204

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

8

82035409

ARM

, Serial Range: -C5220

1шт.

9

87543715

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Serial Range: -C5735

1шт.

9

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Start Serial: D5735

1шт.

10

11087871

CIRCLIP,M7

1шт.

11

15211521

BOLT,Hex, M5 x 32mm, Cl 8.8, Full Thd

2шт.

12

82024194

CUP

1шт.

13

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

15

10516674

LOCK WASHER,M8

2шт.

16

81862738

PLUG,M38 x 28 x 5mm

28MM

2шт.

17

87348474

ARM

, Serial Range: D5220-C5951

1шт.

17

87743892

SHAFT

, Start Serial: D5951

1шт.

18

87348470

LINK

, Serial Range: D5220-C5951

1шт.

18

87743888

LINK

, Start Serial: D5951

1шт.

19

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

, Start Serial: D5220

1шт.

20

12574211

NUT,M6 x 1, Cl 8

, Start Serial: D5220

1шт.

21

81875581

RETAINER,6mm ID x 12.5mm OD x 0.5mm Thk

, Serial Range: D5220-C5951

2шт.

21

87743866

SPACER,6mm ID X 10mm OD X 8.4mm

, Start Serial: D5951

1шт.

22

87356376

PUSH-ON NUT

, Start Serial: D5220

1шт.

23

82025747

RUBBER PEDAL PAD

1шт.
