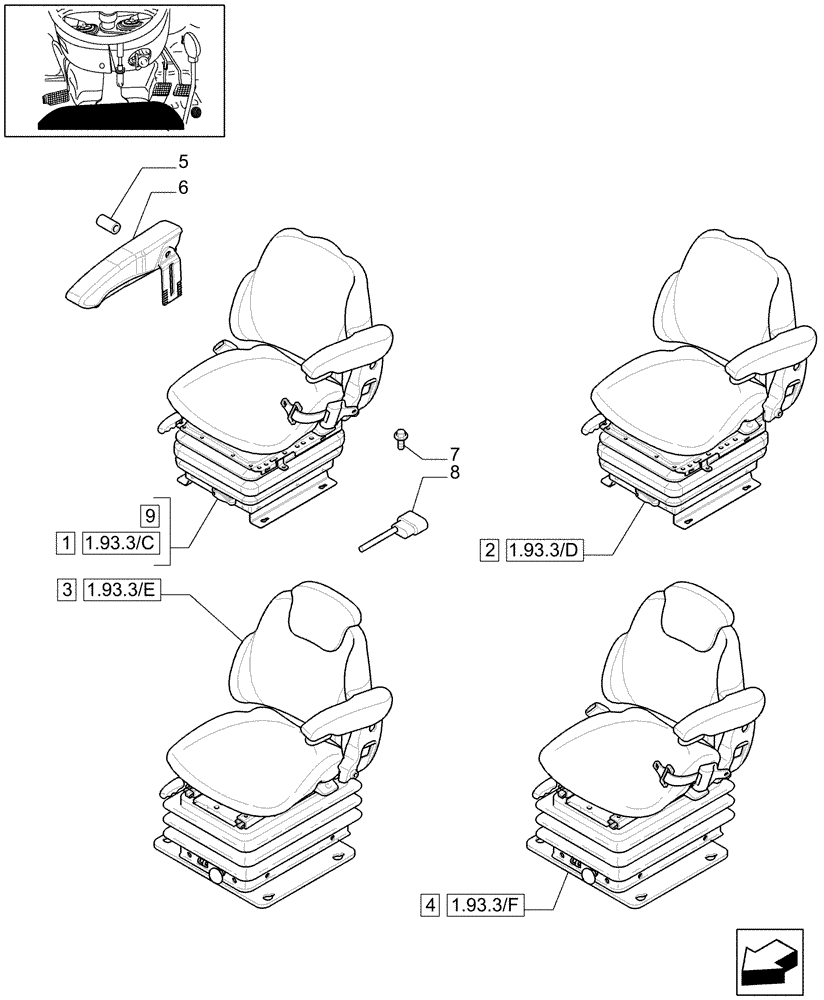

Запчасти Case IH MXU130 (1.93.3[02]) - SEAT - W/CAB (10) - OPERATORS PLATFORM/CAB

1

87309477

DRIVER SEAT

STD, Serial Range: -C5518

1шт.

W/Belt and W/Operator Presence Switch

1шт.

2

87309479

DRIVER SEAT

Var.685

1шт.

L/Belt and L/Operator Presence Switch

1шт.

3

87309507

DRIVER SEAT

Var.854

1шт.

Deluxe W/Air Spring, L/Belt and L/Operator Presence Switch

1шт.

4

87309497

DRIVER SEAT

Var.859

1шт.

Deluxe W/Air Spring, W/Belt and W/Operator Presence Switch

1шт.

5

82032523

COVER

1шт.

6

82025110

ARMREST

1шт.

6

82025111

ARMREST

Loader Ready W/Joystick

1шт.

7

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

4шт.

8

82034342

WIRE HARNESS

W/Operator Presence Switch

1шт.

9

87579093

DRIVER SEAT

, Start Serial: D5518

1шт.

W/Belt and W/Operator Presence Switch

1шт.
