Запчасти Case IH MXU130 (1.82.7/ C[02A]) - DOUBLE - ACTING EXTERNAL CONTROL VALVE WITH FLOAT AND AUTOMATIC CUTOUT - BREAKDOWN - D5500 (07) - HYDRAULIC SYSTEM

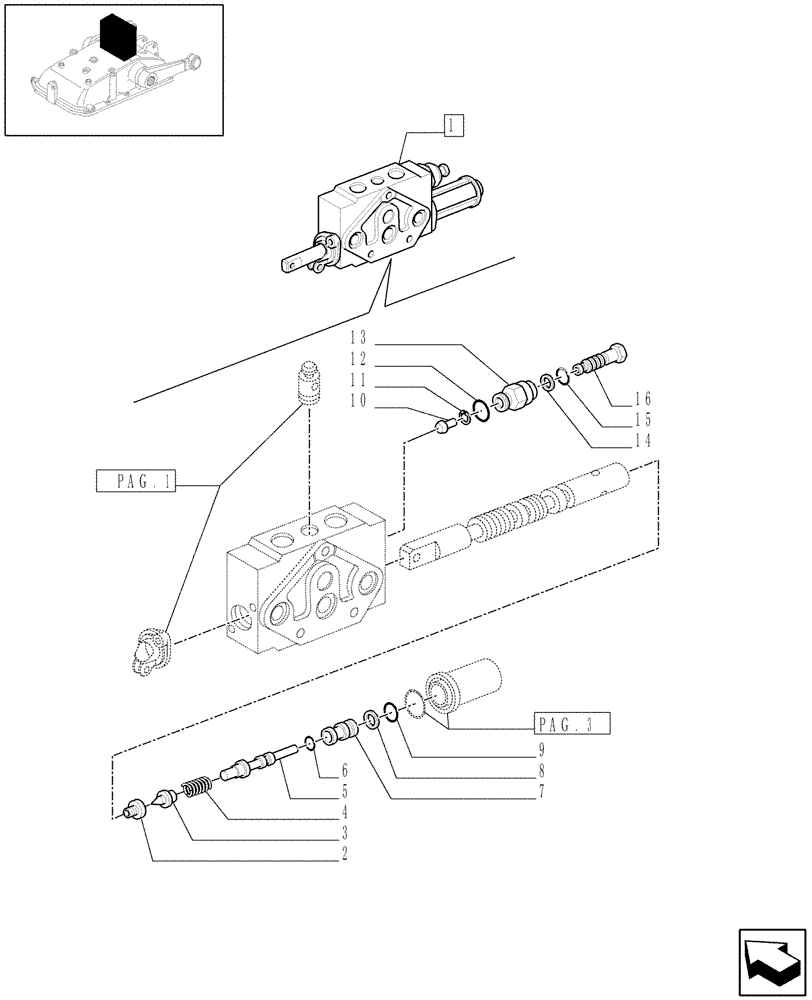

Схема запчастей Case IH MXU130 - (1.82.7/ C[02A]) - DOUBLE - ACTING EXTERNAL CONTROL VALVE WITH FLOAT AND AUTOMATIC CUTOUT - BREAKDOWN - D5500 (07) - HYDRAULIC SYSTEM
.
11
7
8
g
2
6
1
p
p
3
5
g
1
16
3
9
12
4
15
.
a
a
10
13
14

Артикул

Название

Примечание

Количество

1

87396804

VALVE SECTION

W/Float & Kick-Out

1шт.

2

5143554

PLUG,Slot, M7 x 0.75

1шт.

3

5143555

PIN,5.5mm OD x 12mm L

1шт.

4

5143556

SPRING,Compression, 9mm OD x 21.2mm L

1шт.

5

5143557

PIN,5.5mm OD x 52.5mm L

1шт.

6

276447

O-RING,1.78mm Thk x 2.54mm ID

1.78x2.57

1шт.

7

5163363

BUSHING,5.5mm ID x 12mm OD x 16mm L

1шт.

8

5143560

RING,9.91mm ID x 12.61mm OD x 1.2mm Thk

1шт.

9

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

10

5136347

PIN,3.8mm OD x 15mm L

1шт.

11

87016950

SNAP RING,M7, Ext

1шт.

12

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

13

5136346

BODY,7/8" - 14

1шт.

14

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

15

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

M6.75 ID x 1.78 Thk

1шт.

16

5136348

PIN,10mm OD x 37mm L

1шт.

Выбрано товаров: 16
