(1.82.713[01]) - (VAR.370-372) TRAILER BRAKE VALVE AND ASSOCIATED PARTS

Запчасти Case IH MXU130 (1.82.713[01]) - (VAR.370-372) TRAILER BRAKE VALVE AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM

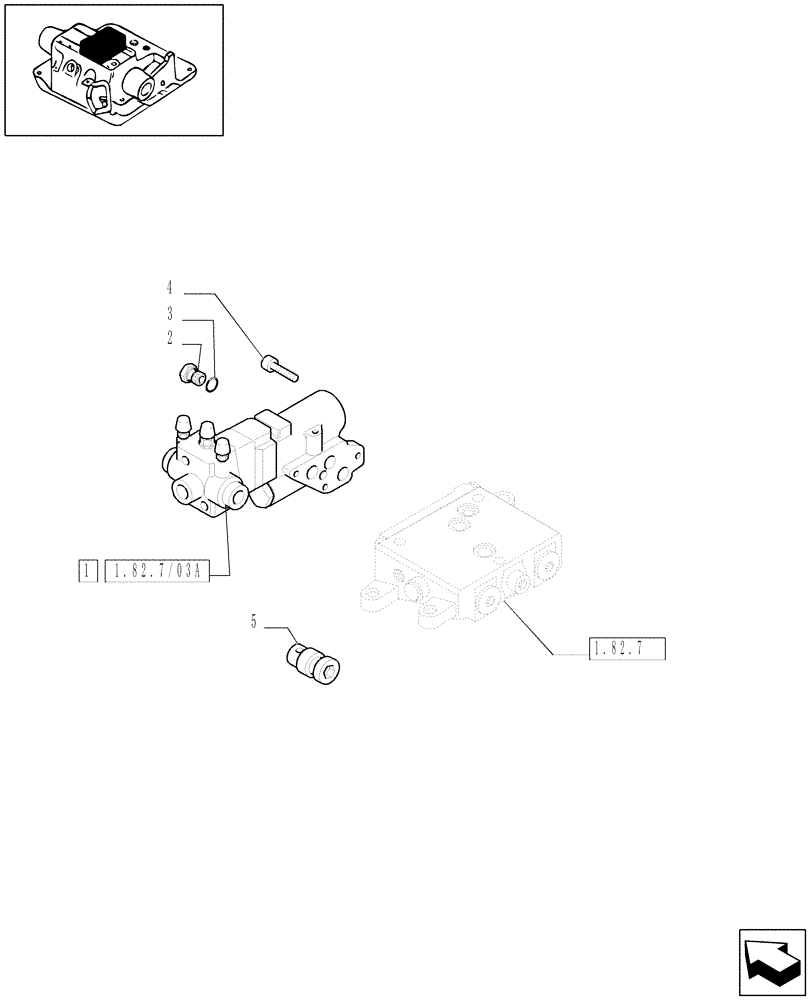

Схема запчастей Case IH MXU130 - (1.82.713[01]) - (VAR.370-372) TRAILER BRAKE VALVE AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM
1.82.7
4
2
1.82.7/03a
5
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5192069

BRAKE VALVE

1шт.

2

47131496

PLUG,Hex, M12 x 1

M12x1

1шт.

3

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

4

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

4

14359424

SCREW,M8 x 75mm, Cl 8.8

M8x75

2шт.

5

47131575

VALVE PRESSURE RELIE

W/Italian Trailer Brake

1шт.

Выбрано товаров: 6
