Запчасти Case IH MXU130 (1.82.7/04) - 2 REAR CONTROL VALVES - COMPONENTS PARTS (07) - HYDRAULIC SYSTEM

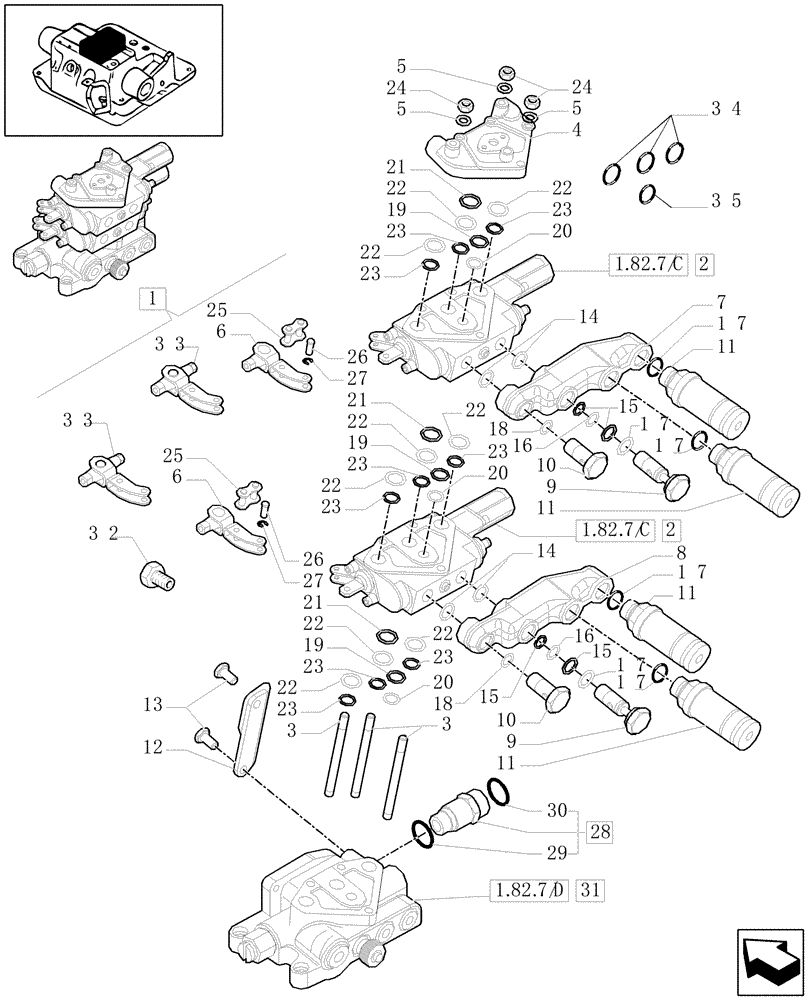

Схема запчастей Case IH MXU130 - (1.82.7/04) - 2 REAR CONTROL VALVES - COMPONENTS PARTS (07) - HYDRAULIC SYSTEM
4
1
5
3
2
0
1
2
2
7
3
3
6
2
1
6
5
3
7
9
2
1
2
4
5
8
1
17
1
2
2
0
1
5
2
1
1
.
7
2
2
8
4
2
.
2
/
8
2
1
2
1
9
2
17
8
17
2
1
9
/
6
1
34
.
2
32
2
8
3
2
3
2
3
0
9
9
1
7
1
2
3
35
5
2
1
1
1
1
d
2
17
.
2
1
5
1
2
2
3
2
2
c
2
9
17
6
/
2
2
2
3
1
1
3
0
6
2
3
4
1
2
8
2
.
1
2
3
5
.
2
2
3
33
2
33
7
2
1
c
2
1
5
1
2
4
17
1
1
2
2
7
2
2
8
2
1
2
6
0
1
0

Артикул

Название

Примечание

Количество

1

87303619

HYDRAULIC VALVE

1шт.

2

47123211

HYD VALVE SECTION

, Serial Range: -C5500

2шт.

2

87396804

VALVE SECTION

, Start Serial: D5500

2шт.

3

5150104

STUD,3/8" - 24 x 5"

3шт.

4

87303247

END PLATE

, Serial Range: -C5500

1шт.

4

87396840

END PLATE

, Start Serial: D5500

1шт.

5

10569474

LOCK WASHER,10.2mm ID x 16mm ID x 2.5mm Thk

M10, Serial Range: -C5500

3шт.

5

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

, Start Serial: D5500

3шт.

6

47123263

CONTROL LEVER

, Serial Range: -C5311

2шт.

7

87559221

MANIFOLD VALVE

Upper

1шт.

8

87559220

MANIFOLD VALVE

Central

1шт.

9

47135700

BANJO BOLT

2шт.

10

47136004

BANJO BOLT

2шт.

11

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

Incl. 17, include p/n 1534623C1

4шт.

1534623C1

SEAL KIT

1шт.

12

47127567

SUPPORT

1шт.

13

14307521

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

14

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

4шт.

15

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

4шт.

16

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

18

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

19

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

, Serial Range: -C5500

1шт.

20

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

, Serial Range: -C5500

1шт.

21

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

, Serial Range: -C5500

1шт.

22

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

, Serial Range: -C5500

3шт.

23

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

, Serial Range: -C5500

3шт.

24

5116857

NUT,3/8" - 24

3шт.

25

5116896

LINK,19.05mm Pitch

2шт.

26

5172456

PIN,6mm OD x 20mm L

2шт.

27

11087776

CIRCLIP,Ext., M6, BLO

2шт.

28

47125148

HYD CONNECTOR

Includes Ref.29, 30

1шт.

29

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

30

14453581

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

31

87363884

MANIFOLD VALVE

1шт.

32

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

VAR. 263

1шт.

33

87393956

CONTROL LEVER

, Start Serial: D5311

2шт.

34

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3, Start Serial: D5500

9шт.

35

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING, Start Serial: D5500

3шт.

Выбрано товаров: 39
