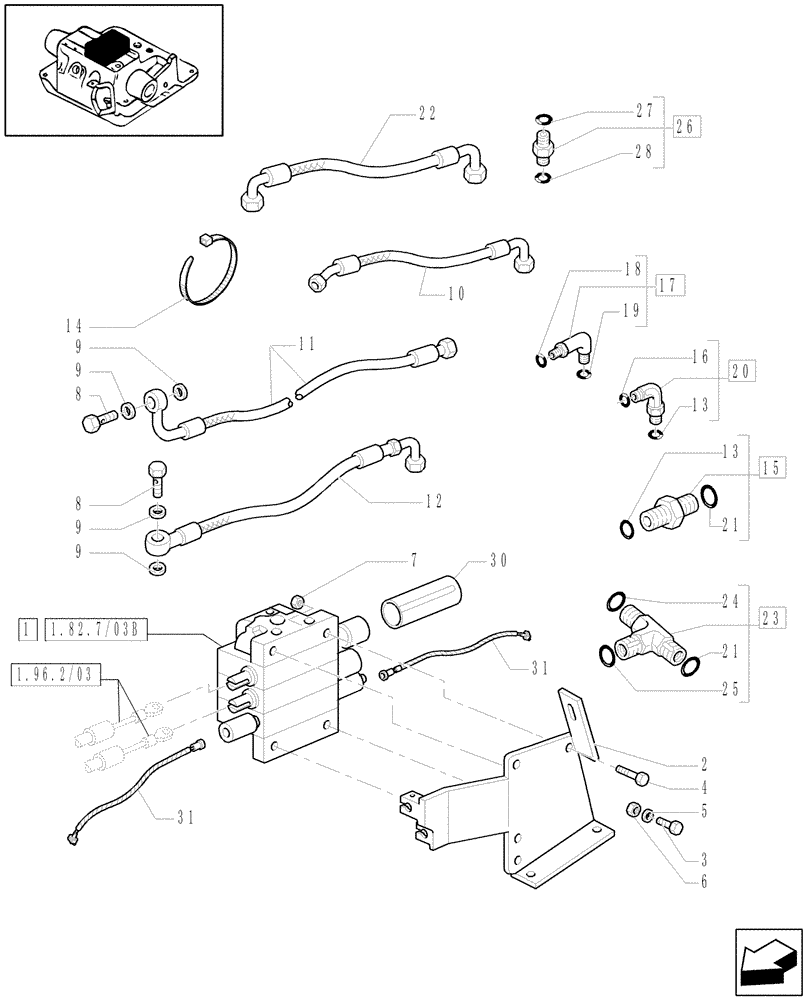

Запчасти Case IH MXU130 (1.82.7/03[01A]) - (VAR.633) 3 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER (NA) - CONTROL VALVE AND PIPES - D5363 (07) - HYDRAULIC SYSTEM

1

87324662

DISTRIBUTOR

1шт.

2

87568641

BRACKET

1шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

4

14420371

SCREW,M10 x 35mm, Cl 12.9

M10X35

2шт.

4

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

7

11701721

NUT,M10, Cl 10

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

M12X1,25X40

2шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

4шт.

10

87325050

HYDRAULIC HOSE

Load Sense, MM.2050, Serial Range: -C5847

1шт.

10

87708268

HOSE

, Start Serial: D5847

1шт.

11

82034041

FLEXIBLE HOSE,15.88mm ID x 750mm L, SAE 100R2

Return, MM.680

1шт.

12

87325049

HYDRAULIC HOSE

Feed, MM.1742

1шт.

13

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

14

14560287

CABLE TIE,207.00mm L

COLLAR 13/16"-16 UN-2A/M22X1,5, Includes Ref. 15, 16

1шт.

15

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1.78 x 12.42

1шт.

17

82034042

ELBOW

1-3/16"-12 UN-2A/M27X2, Includes Ref. 18, 19

1шт.

18

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

19

14438185

O-RING,24mm ID x 3mm

1шт.

20

5194728

90 ELBOW

13/16"-16, Includes Ref. 16

1шт.

21

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

9/16"-18/M10X1, Includes Ref. 22, 23

1шт.

22

87535356

FLEXIBLE HOSE

1шт.

23

87314900

HYD CONNECTOR

1шт.

24

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

25

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

26

5185045

HYD CONNECTOR

9/16"-18/M12X1,5, Includes Ref. 24, 25

1шт.

27

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

28

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

29

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

1шт.

30

87324672

PROTECTION CAP

1шт.

31

87389074

ELECTRIC CABLE

, Start Serial: D5364

2шт.
