Запчасти Case IH MXU130 (1.82.7/02[02]) - (VAR.704) 2 CONTROL VALVES WITH MECHAN. JOYSTICK FOR LOADER - FAST-FITTING CONNECTION AND PIPES (07) - HYDRAULIC SYSTEM

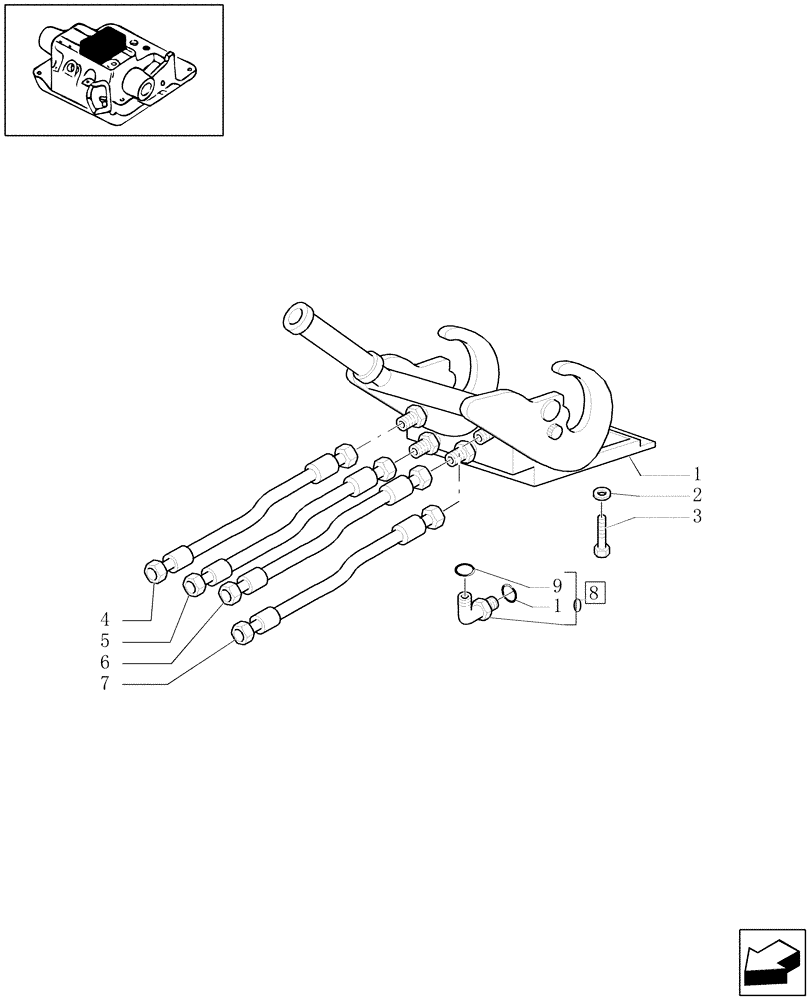

Схема запчастей Case IH MXU130 - (1.82.7/02[02]) - (VAR.704) 2 CONTROL VALVES WITH MECHAN. JOYSTICK FOR LOADER - FAST-FITTING CONNECTION AND PIPES (07) - HYDRAULIC SYSTEM
8
1
3
10
6
4
7
5
2
9

Артикул

Название

Примечание

Количество

1

82032934

COUPLING

, Serial Range: -C5909

1шт.

1

87733579

COUPLING

, Start Serial: D5909

1шт.

2

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

82031013

HYDRAULIC HOSE

Yellow, MM.975

1шт.

5

82031014

FLEXIBLE HOSE,1060.00 mm, SAE J517-100R1, 100R2.

Green

1шт.

6

82031015

FLEXIBLE HOSE

Red, MM.1105

1шт.

7

82031016

FLEXIBLE HOSE,12.7mm ID x 995mm L, SAE 100R2

Blue

1шт.

8

82031421

90 ELBOW,13/16"-16 ORFS x M18 x 1.5 ORB

Includes Ref.9, 10

1шт.

9

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

Выбрано товаров: 11
