Запчасти Case IH MXU130 (1.82.4[01]) - LIFTER, DISTRIBUTOR AND VALVES BREAKDOWN (07) - HYDRAULIC SYSTEM

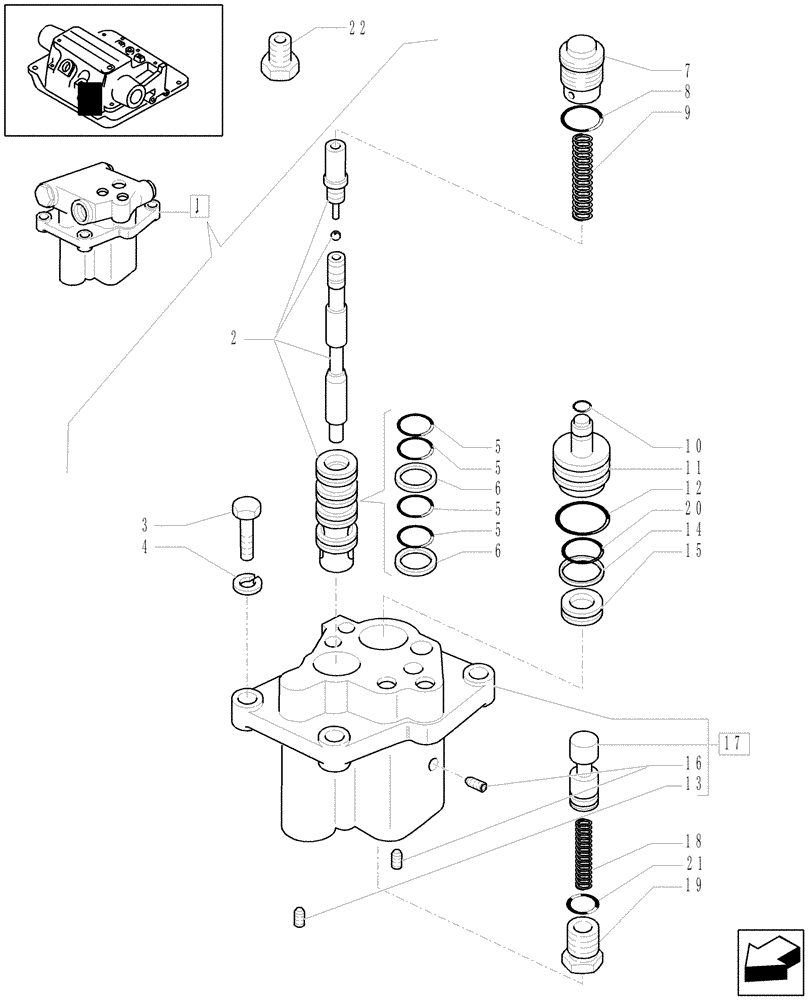

Схема запчастей Case IH MXU130 - (1.82.4[01]) - LIFTER, DISTRIBUTOR AND VALVES BREAKDOWN (07) - HYDRAULIC SYSTEM
5
6
1
1
9
6
0
8
5
1
0
5
8
3
4
3
21
1
1
9
5
2
22
2
7
2
1
7
6
5
1
4
1
1
1
1
1

Артикул

Название

Примечание

Количество

1

47135710

CONTROL VALVE

1шт.

2

5179745

HYDRAULIC VALVE

1шт.

3

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

4

10516674

LOCK WASHER,M8

4шт.

5

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

4шт.

6

5117726

WASHER,17.83mm ID x 22.19mm OD x 1.14mm Thk

3шт.

7

5150765

PLUG

1шт.

8

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

9

4973361

SPRING,Compression, 15.5mm OD x 50.5mm L

1шт.

10

14452581

O-RING,0.176" ID x 0.07" Width

1шт.

11

5150766

CONTROL UNIT

1шт.

12

14457981

O-RING,1.049" ID x 0.103" Width

1шт.

13

10269150

PLUG,M6 x 1 x 60mm L

M6X1

1шт.

14

5150752

GUIDE RING,19.3mm ID x 26mm OD x 3.3mm Thk

D=26X3,2

1шт.

15

5150759

PISTON

1шт.

16

5162458

PLUG,M10 x 1.25

M10X1,25

2шт.

17

5155834

BODY

Includes Ref.13, 16

1шт.

18

5117729

SPRING,Compression, 11mm OD x 44mm L

1шт.

19

5117734

PLUG,M20 x 1.5

1шт.

20

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

21

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

VAR. 263

1шт.

22

10305911

PLUG,M22 x 1.5 x 27

VAR. 263

1шт.

Выбрано товаров: 22
