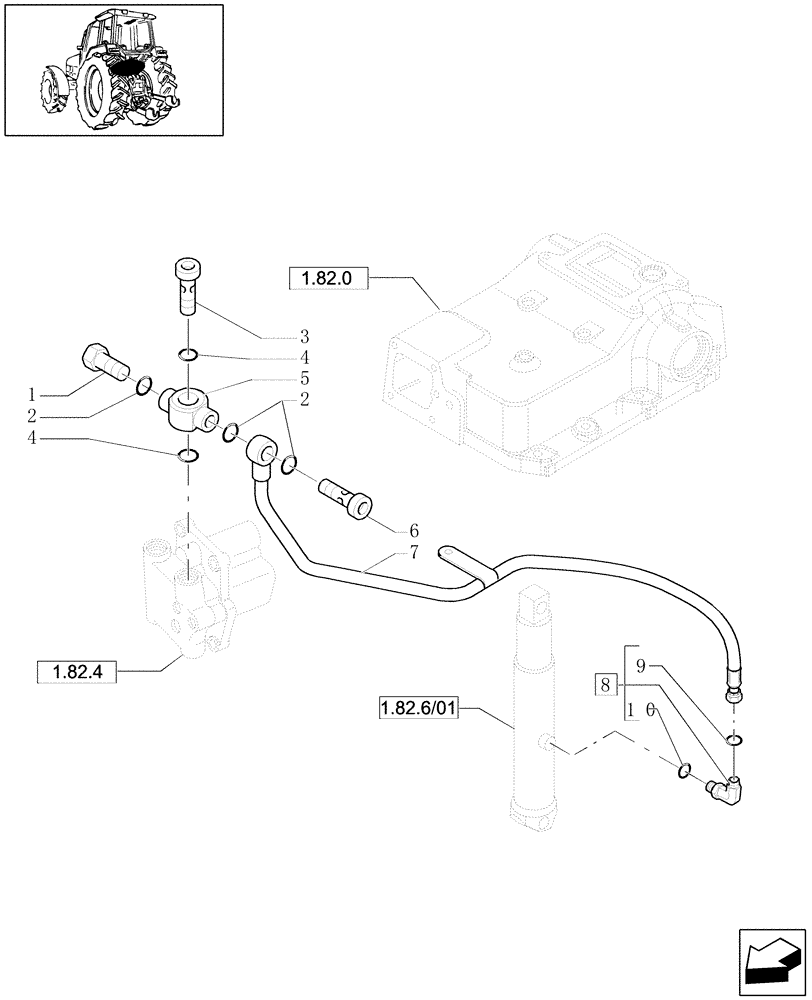

Запчасти Case IH MXU130 (1.82.1/01) - (VAR.061-062) ONE SUPPLEMENTARY CYLINDER - LIFTER LINES (07) - HYDRAULIC SYSTEM

1

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

2

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

3шт.

3

47131904

BANJO BOLT

1шт.

4

80221964

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

RH

2шт.

5

47131903

RING

1шт.

6

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

7

47133581

HYD TUBE

LH

1шт.

8

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

Incl. 9, 10

1шт.

9

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

10

14437885

O-RING,13.30mm ID x 2.40mm

1шт.
