Запчасти Case IH MXU130 (1.80.5/04[02]) - (VAR.558) - GUARDS AND PIPES (07) - HYDRAULIC SYSTEM

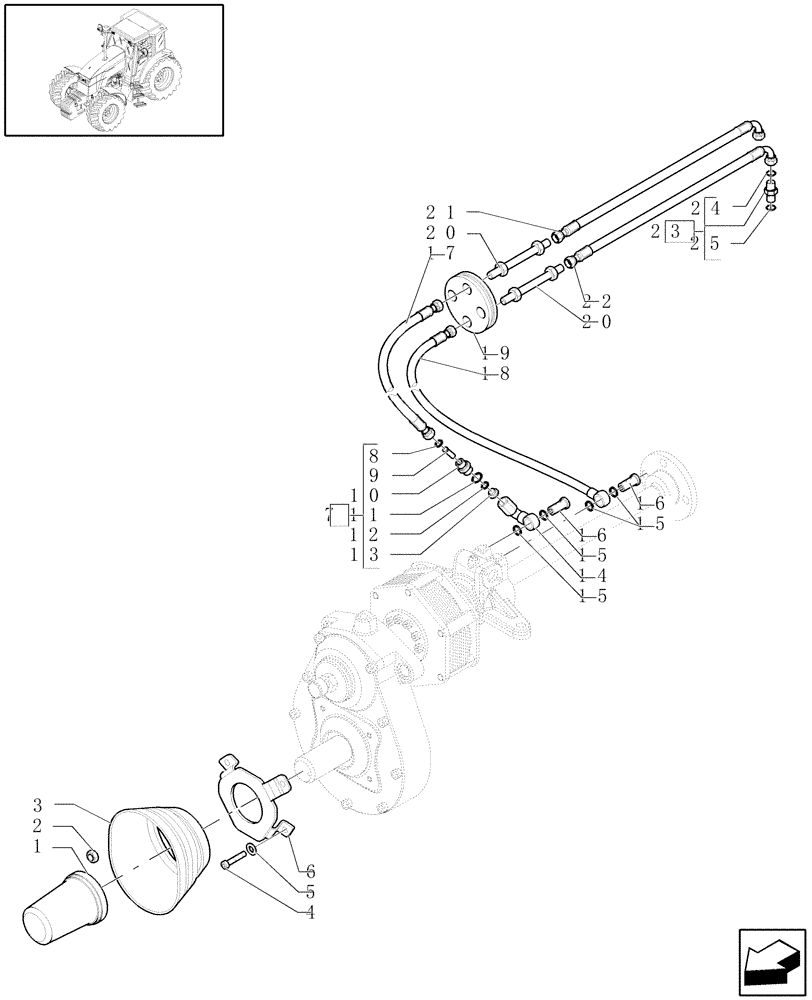

Схема запчастей Case IH MXU130 - (1.80.5/04[02]) - (VAR.558) - GUARDS AND PIPES (07) - HYDRAULIC SYSTEM
11
20
23
24
22
15
19
21
25
12
5
17
1
3
14
6
4
13
15
15
10
20
18
16
8
16
7
9
2

Артикул

Название

Примечание

Количество

1

5165104

COVER

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

3

47056296

GUARD

1шт.

4

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

47057580

COVER

1шт.

7

47127491

HYD CONNECTOR,M10 x 1 x 7.4mm L

Incl. 8 - 13

1шт.

8

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

9

47126655

FILTER STRAINER

1шт.

10

47127489

HYD CONNECTOR,11/16"-16, M16 x 1.5

11/16"-16, M16x1.5

1шт.

11

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

12

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

13

47127332

ORIFICE,M10 x 1

1шт.

14

47057815

TUBE

1шт.

15

4858609

WASHER,Brass

16x22x1.5

4шт.

16

10184417

BANJO BOLT,M16 x 1.5 x 31mm

2шт.

17

47057814

FLEXIBLE HOSE

11/16"-16.7/16-20 MM. 580

1шт.

18

47057660

HYDRAULIC HOSE

7/16"-20 MM. 660

1шт.

19

87302214

SUPPORT

1шт.

For 4100 PROFI, 4115 PROFI only

1шт.

20

82030865

ADAPTER,7/16" - 20 JIC x 7/16" - 20 JIC

7/16"-20

2шт.

21

47057668

HYDRAULIC HOSE

7/16"-20, 13/16"-16 MM. 2000

1шт.

22

47057667

FLEXIBLE HOSE,6.4mm ID x 2000mm L, SAE 100R2

7/16"-20, 11/16"-16 MM. 2000

1шт.

23

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Includes Ref.24, 25

1шт.

24

89993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 26
