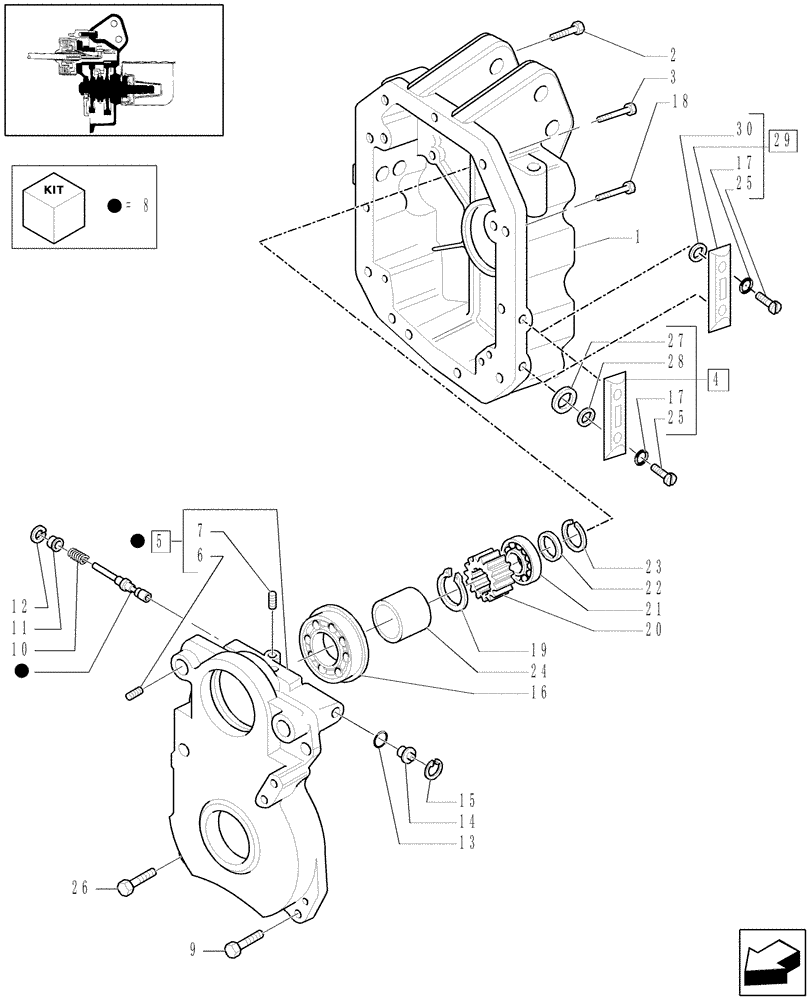

Запчасти Case IH MXU130 (1.80.1[01]) - POWER TAKE-OFF 540 RPM (NA) (07) - HYDRAULIC SYSTEM

1

47131253

CASING

1шт.

2

11254124

BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

1шт.

3

15981024

SCREW,Hex, M16 x 1.5 x 55mm, Cl 8.8

M16X1, 5X55

2шт.

4

47124536

INDICATOR

Assy., Includes Ref.17, 25, 27, 28, 29, Serial Range: -C5171

1шт.

5

47126419

SUPPORT

Includes Ref.6, 7, 24

1шт.

6

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

7

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

M10 x 1.25

3шт.

8

47128641

SUPPORT

ASSY

1шт.

9

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

10

47123788

SPRING,15mm OD x 87.5mm L

1шт.

11

47127951

CAP COVER

1шт.

12

13420576

SNAP RING,M16, Int

1шт.

13

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

14

47128597

PLUG,6mm ID x 19mm OD x 13mm L

1шт.

15

11057776

SNAP RING,M19, Int

1шт.

16

5182640

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

17

47130060

O-RING

, Serial Range: -C5171

2шт.

18

15981624

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

8шт.

19

5138419

SNAP RING,M50

D=50

1шт.

20

5197545

GEAR,17T, 40T

1шт.

21

5151460

ROLLER BEARING,35mm ID x 72mm OD x 17mm W

35 x 72 x 17

1шт.

22

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

23

5154307

SNAP RING,M35

D=35

1шт.

24

87324318

SPACER

1шт.

25

47130059

SCREW,Pan HD, M12 x 41mm

M12, Serial Range: -C5171

2шт.

26

15541221

SCREW,Hex, M12 x 1.25 x 70mm, Cl 8.8

2шт.

27

47130061

WASHER

1шт.

28

47130190

RUBBER SEAL

2шт.

29

87348844

INDICATOR

, Start Serial: D5171

1шт.

30

87349969

RUBBER SEAL

, Start Serial: D5171

2шт.
