Запчасти Case IH MXU130 (1.42.0[01]) - 2WD STEERING CYLINDER PIPES AND POWER STEERING PIPES (04) - FRONT AXLE & STEERING

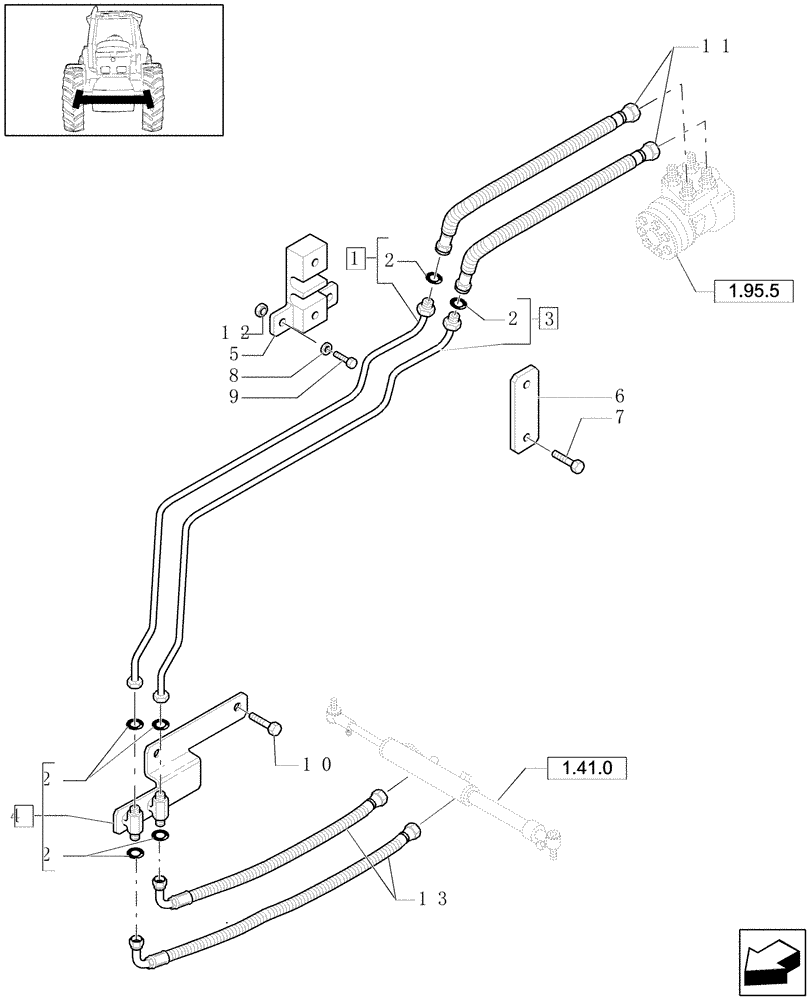

Схема запчастей Case IH MXU130 - (1.42.0[01]) - 2WD STEERING CYLINDER PIPES AND POWER STEERING PIPES (04) - FRONT AXLE & STEERING
3
6
2
12
4
2
2
5
13
9
1
8
7
2
10
11

Артикул

Название

Примечание

Количество

1

82035889

RIGID TUBE,10 mm OD, 90 mm Length

Includes Ref.2, MXU100-MXU110

1шт.

1

82029212

HYD TUBE,10.00mm OD x 90.00mm

Includes Ref.2, MXU115-MXU130

1шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

6шт.

3

82029211

HYD TUBE

Includes Ref.2, MXU100-MXU110

1шт.

3

82035900

RIGID TUBE,10.00mm OD x 90.00mm

Includes Ref.2, MXU115-MXU130

1шт.

4

82033943

BRACKET

11/16" -16, Includes Ref.2

1шт.

5

82029226

CLAMP

1шт.

6

82029227

CLAMP

1шт.

7

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

8

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

9

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

9

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

2шт.

10

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

M8 x 1.25 x 16

1шт.

11

82035847

FLEXIBLE HOSE,9.53mm ID x 540mm L, SAE 100R2

11/16"-16, MM.540

1шт.

12

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

13

82036370

HOSE

11/16"-16, MM.600

2шт.

Выбрано товаров: 16
