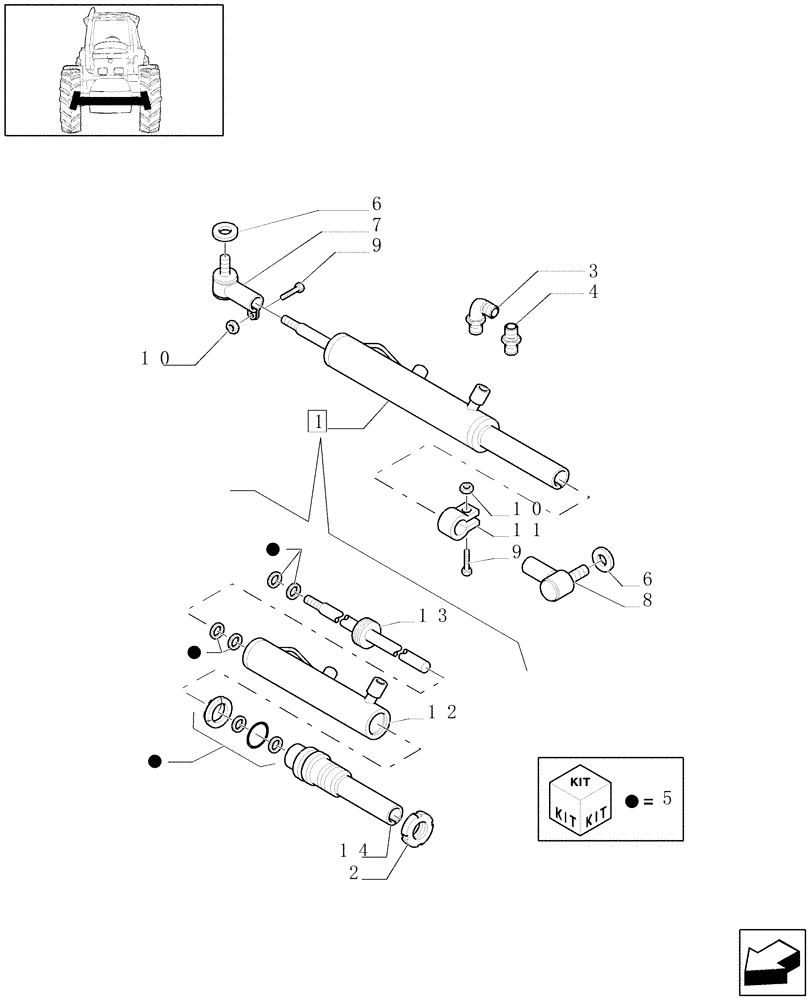

Запчасти Case IH MXU130 (1.41.0/01[03]) - 2WD FRONT AXLE - HYDRAULIC STEERING CYLINDER (04) - FRONT AXLE & STEERING

1

82037187

STEERING CYLINDER,Double Acting, 25mm Rod, 236.5mm Stroke

1шт.

1

82037187R

REMAN-HYD CYLINDER

MXU130 VALUE TRACTOR (7/05-)

1шт.

1

82037187C

CORE-HYD CYLINDER

Return Number

1шт.

2

82037195

LOCK NUT

1шт.

3

81865683

ELBOW,90 Deg, 11/16-16 ORFS x M14 x 1.5 ORB

1шт.

4

81863515

HYD CONNECTOR,M14 x 11/16"-16 ORS

1шт.

5

82037194

SEAL KIT

1шт.

6

81863814

COVER

2шт.

7

81863813

TRACK ROD END ASSY

Includes Ref.6, 9, 10

1шт.

8

81863815

BALL JOINT,1 1/4" - 12 x 3" L

Includes Ref.6

1шт.

9

80280524

SCREW

1шт.

10

80280431

NUT

1шт.

11

80280431

NUT

M10X20

1шт.
