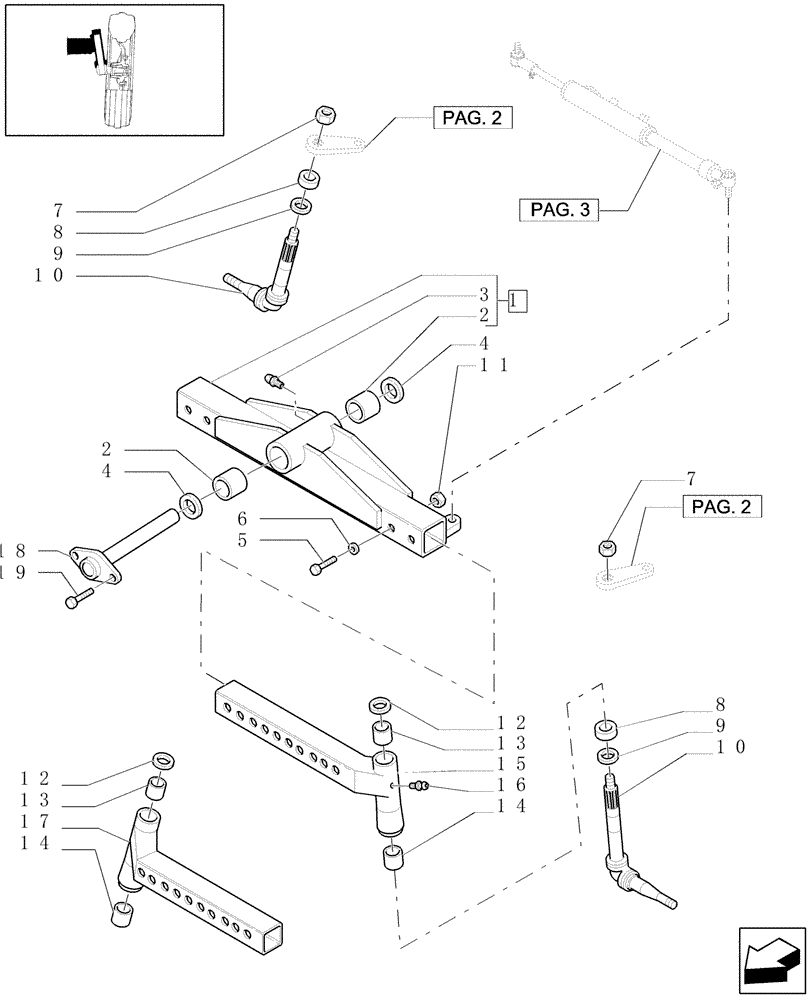

Запчасти Case IH MXU130 (1.41.0/01[01]) - 2WD FRONT AXLE - BODY (04) - FRONT AXLE & STEERING

1

82010793

FRONT AXLE

Includes Ref.2, 3

1шт.

2

82003066

BUSHING,47.65mm ID x 54.06mm OD x 52.58mm L

2шт.

3

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

4

81820110

THRUST WASHER

3/4"

2шт.

5

81872164

BOLT

M20X2.5X140

4шт.

6

81872166

SPACER,21mm ID x 39mm OD x 12mm L

4шт.

7

83955891

JAM NUT

1-1/8"-12

2шт.

8

81802870

BEARING ASSY

2шт.

9

81864058

SPACER

2шт.

10

81872317

SPINDLE

12"

2шт.

11

80380424

LOCK NUT

M20X2.5

4шт.

12

82003803

SEAL,38mm ID x 57mm OD x 5mm Thk

2шт.

13

83903309

BUSHING,43.84mm ID x 50.86mm OD x 47.75mm L

2шт.

14

81812242

BUSHING,49.3mm ID x 52.51mm OD x 44.45mm L

2шт.

15

82028120

EXTENSION

LH

1шт.

16

87414

LUBE NIPPLE,1/4" - 28

2шт.

17

82028121

EXTENSION

RH

1шт.

18

82010790

PIN

, Serial Range: -C5714

1шт.

18

87659607

PIN,47.5mm OD x 330mm L

, Start Serial: D5714

1шт.

19

82001778

BOLT

M12 x 1.75 x 30

2шт.
