Запчасти Case IH MXU130 (1.29.9/02[03]) - (VAR.129) TRANSMISSION 16X16 (SPS) - GEARBOX CLUTCH HOUSING COVER (03) - TRANSMISSION

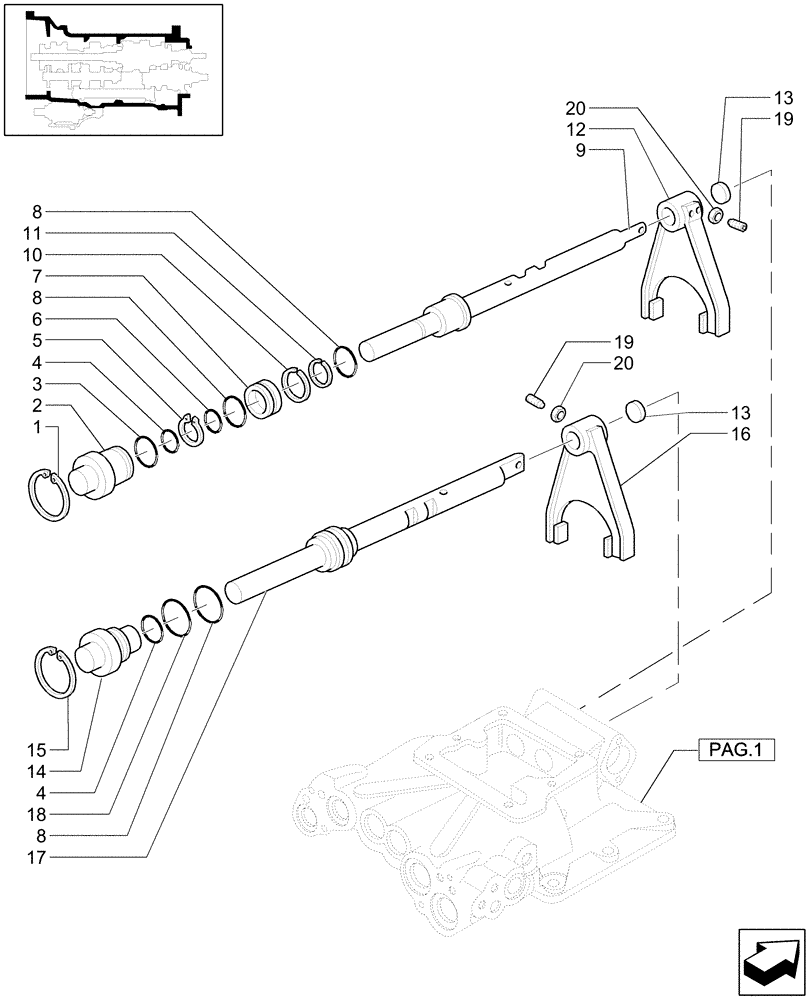

Схема запчастей Case IH MXU130 - (1.29.9/02[03]) - (VAR.129) TRANSMISSION 16X16 (SPS) - GEARBOX CLUTCH HOUSING COVER (03) - TRANSMISSION
3
14
11
8
8
15
9
6
1
18
5
13
13
19
4
8
19
10
7
2
20
17
16
4
12
20

Артикул

Название

Примечание

Количество

1

11060676

CIRCLIP,M55, Int

1шт.

2

5199735

PLUG

1шт.

3

14459180

O-RING,45.69mm ID x 2.62"

1шт.

4

80511029

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

.937" ID x .139" Thk

4шт.

5

11067276

SNAP RING,M24, Ext

1шт.

6

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

7

5199737

PISTON RING,41.65mm OD x 23.8mm ID x 8mm Thk

1шт.

8

5175009

SEALING RING,34.55mm ID x 42.02mm OD x 3.2mm Thk

SEALRING

3шт.

9

47127527

ROD

1шт.

10

13422176

CIRCLIP,M26, Int

D=50

1шт.

11

13398876

SNAP RING,M38, Int

D=38

1шт.

12

82852615

CLEVIS

1шт.

13

83417039

PLUG

2шт.

14

5199732

PLUG

1шт.

15

11060276

SNAP RING,M47, Int

D=47

1шт.

16

82007504

SHIFTER FORK

1шт.

17

5199730

ROD

1шт.

18

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

19

82895780

SET SCREW,less Hex Socket, M10 x 20mm

M10x20

4шт.

20

82895198

NUT,Jam, Hex, M10, 5mm High, CL 04

4шт.

Выбрано товаров: 20
