Запчасти Case IH MXU130 (1.29.7[02]) - TRANSMISSION OIL COOLER AND PIPES (03) - TRANSMISSION

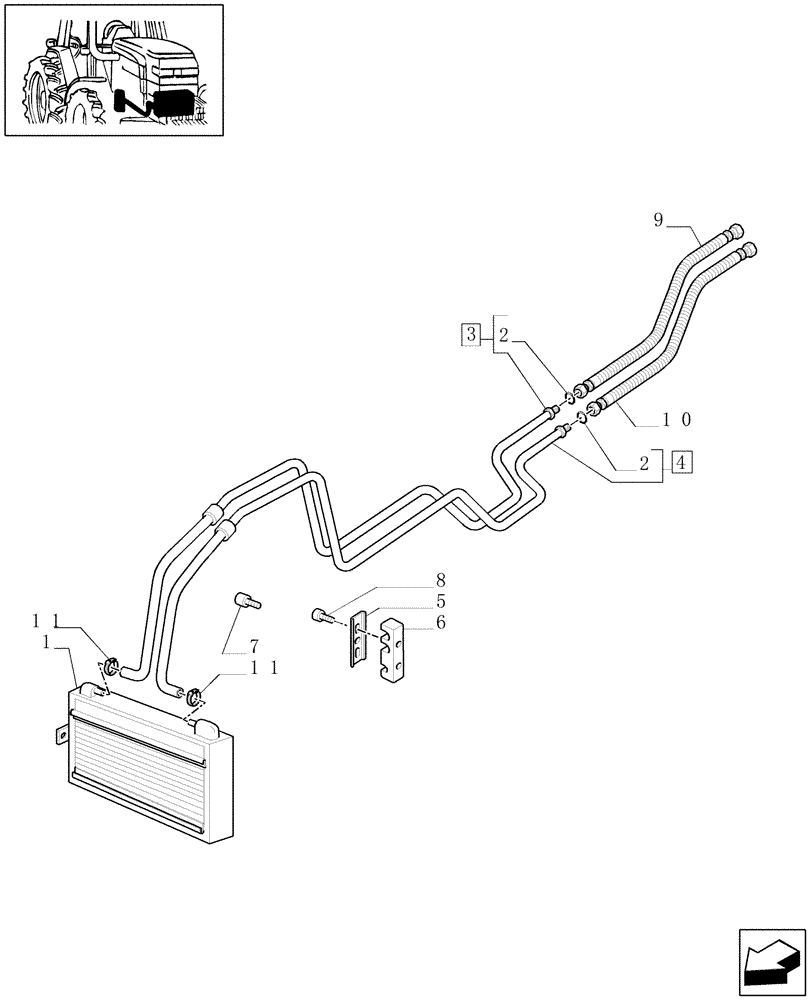

Схема запчастей Case IH MXU130 - (1.29.7[02]) - TRANSMISSION OIL COOLER AND PIPES (03) - TRANSMISSION
2
8
9
6
10
7
3
11
4
1
5
2
11

Артикул

Название

Примечание

Количество

1

82033781

OIL COOLER

1шт.

2

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

90 Duro, .489" ID x .070" Thk

2шт.

3

87732786

TUBE,12.7 mm OD x 90, 85 mm L

Includes Ref.2

1шт.

4

87732785

TUBE,12.7 mm OD x 120, 90 mm L

Includes Ref.2

1шт.

5

82004584

CLAMP

1шт.

6

82030578

CLAMP

2шт.

7

80088044

SCREW

Cap, HH, G5, 3/8"-16 x 1-1/2"

4шт.

8

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

4шт.

9

82034720

HYDRAULIC HOSE,12.7mm ID x 710mm L, SAE 100R1

MM.710, 13/16"-16

1шт.

Q.ty=1, W/Trans. 24X24 std version, Q.ty =2, W/Trans.12X12 For MXUS115, VAR.110-120

1шт.

9

82034721

HYDRAULIC HOSE

MM.825, 13/16"-16, W/Trans.16x16 (SPS)

2шт.

10

82034722

HOSE,12.7mm ID x 355mm L, SAE 100R1

MM.355, 13/16"-16, W/Trans.24x24 STD Version

1шт.

11

82039343

HOSE CLAMP,16mm - 27mm

, Serial Range: -C6713

2шт.

11

82039341

CLAMP,12mm - 22mm

, Start Serial: D6713

4шт.

Выбрано товаров: 14
