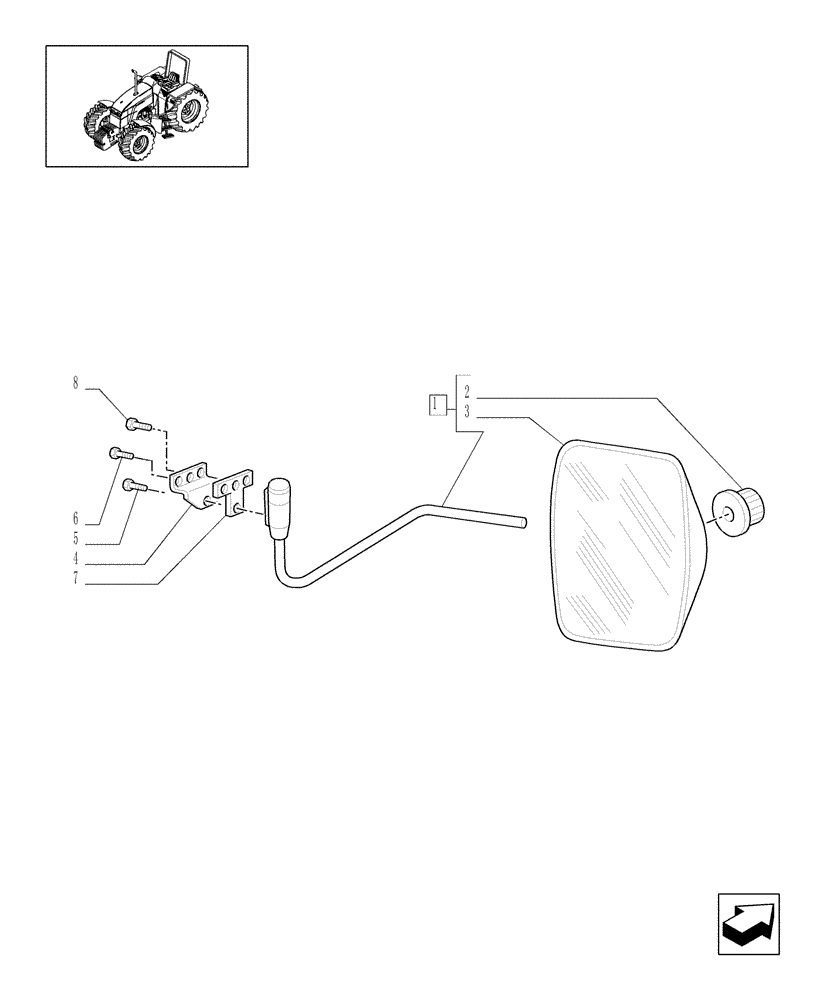

Запчасти Case IH MXU125 (1.93.6/03) - (VAR.878/1) REAR-VIEW MIRRORS FOR ROPS (10) - OPERATORS PLATFORM/CAB

1

82029634

REAR VIEW MIRROR

RH, Serial Range: -C4830

1шт.

1

82029636

REAR VIEW MIRROR

LH, Serial Range: -C4830

1шт.

1

82036130

REAR VIEW MIRROR

RH, Start Serial: D4830

1шт.

1

82036131

REAR VIEW MIRROR

LH, Start Serial: D4830

1шт.

2

82016257

KNOB

, Serial Range: -C4830

2шт.

3

81871837

LH MIRROR

2шт.

4

82014481

BRACKET

2шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

6

10903624

BOLT,Hex, M6 x 50mm, Cl 8.8

4шт.

6

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

2шт.

7

82014483

FIXING PLATE

1шт.

8

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.
