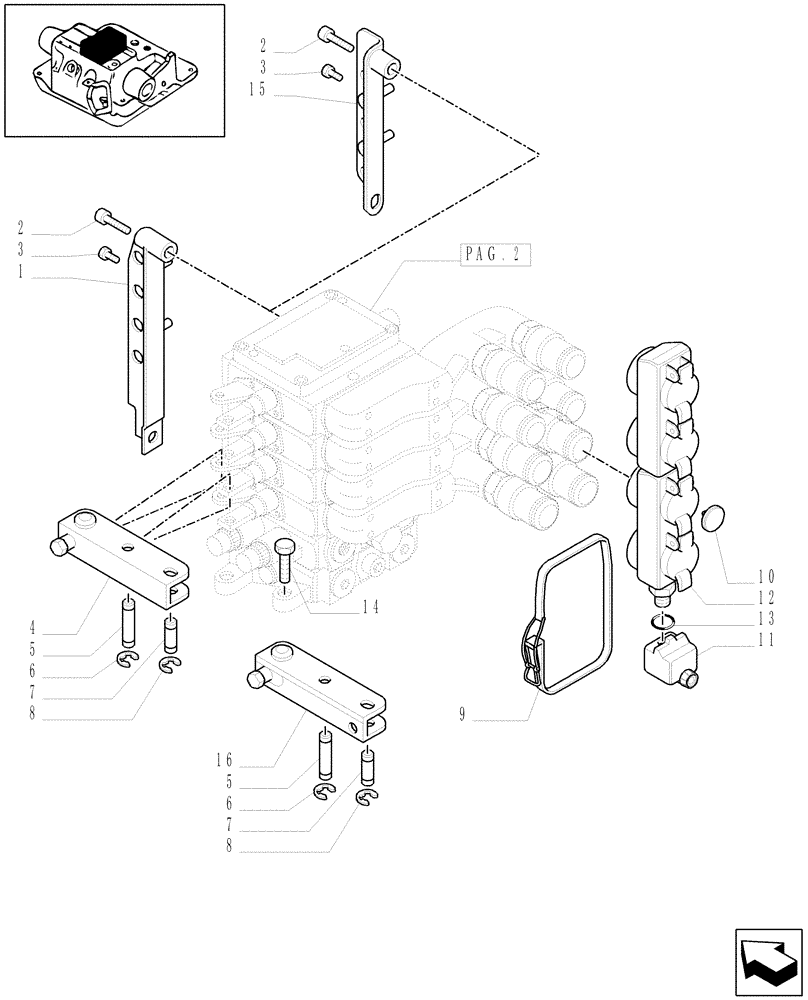

Запчасти Case IH MXU125 (1.82.7/44[01]) - (VAR.010) 4 REMOTES(2NC+2CONFIG) FOR CCLS PUMP FOR EDC AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

1

5197909

BRACKET

, Serial Range: -C5311

1шт.

2

14306731

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 10.9, Full Thd

1шт.

3

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

, Serial Range: -C5311

1шт.

3

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

, Start Serial: D5311

1шт.

4

47128010

LEVER

, Serial Range: -C5311

4шт.

5

5193177

PIN,6mm OD x 29.48mm L

4шт.

6

11063971

SPRING CLIP,M6

D=6

8шт.

7

5113008

PIN,8mm OD x 26mm L

D=8

4шт.

8

11065676

SNAP RING,M8, Ext

8шт.

9

82031973

SPRING CLIP

1шт.

10

82029893

LENS

Blue, Serial Range: -C5909

2шт.

10

82029892

LENS

Green, Serial Range: -C5909

2шт.

10

82029894

DISC,20mm OD x 5.5mm Thk, Green, PA6+30% Glass Fiber

Brown, Serial Range: -C5909

2шт.

10

82029895

DISC,20mm D, Black

Black

8шт.

11

82031972

RESERVOIR, HYDRAULIC

100mm wide, Serial Range: -C5736

2шт.

11

87652228

RESERVOIR, HYDRAULIC

, Start Serial: D5736

2шт.

12

82035719

DUST CAP

Incl. 10, Serial Range: -C5909

2шт.

12

87733580

DUST CAP

Incl. 10, Start Serial: D5909

2шт.

13

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

14

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

15

87358965

STOP

, Start Serial: D5311

1шт.

16

87358094

LEVER

, Start Serial: D5311

4шт.
