Запчасти Case IH MXU125 (0.06.0/03) - CYLINDER HEAD (01) - ENGINE

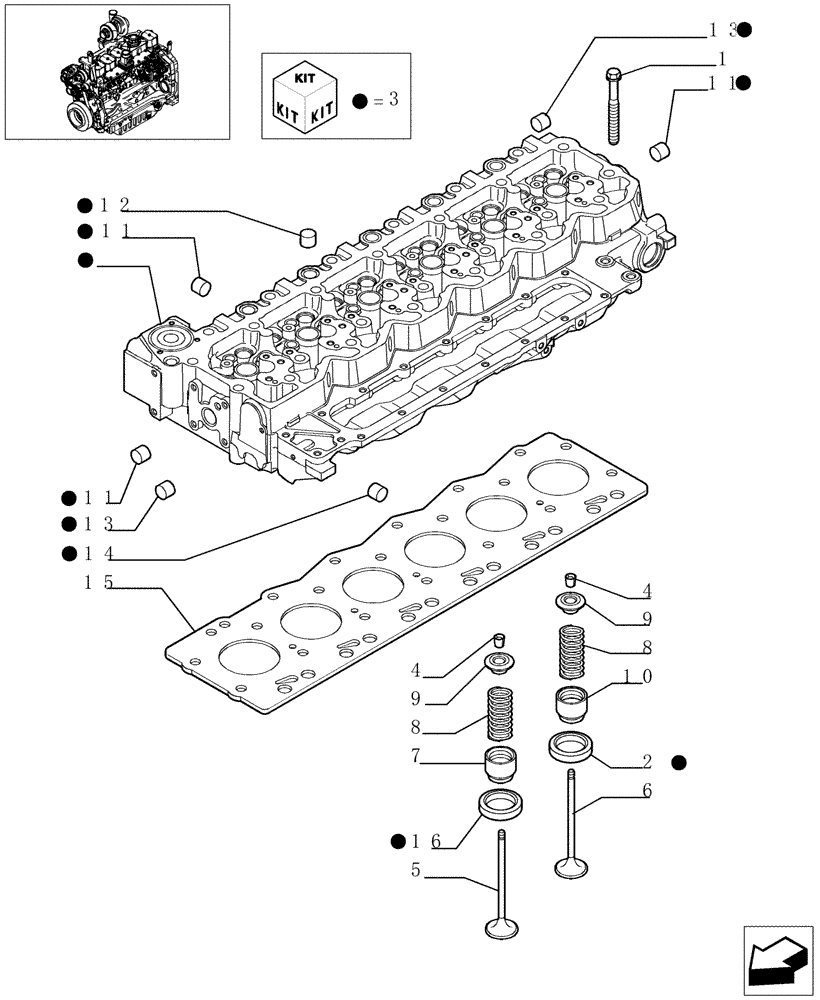

Схема запчастей Case IH MXU125 - (0.06.0/03) - CYLINDER HEAD (01) - ENGINE
4
2
1
1
1
1
5
8
3
1
4
11
10
11
1
15
1
13
1
1
9
9
16
13
8
1
11
1
6
12
14
1
7

Артикул

Название

Примечание

Количество

1

4891024

BOLT,Flng, M12 x 1.75 x 130mm

M12 x 130

12шт.

1

4891025

SCREW,Flng, M12 x 1.75 x 150mm

Hex Flange Hd Cap, M12 x 150

14шт.

2

4897578

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

12шт.

3

4893051

CYLINDER HEAD

ASSY

1шт.

3

2831279R

REMAN-CYLINDER HEAD

Reman for New PN 4893051

1шт.

3

2831279C

CORE-CYLINDER HEAD

Return Number

1шт.

4

4899081

ROCKER ARM COTTER

ASSY

48шт.

5

4895051

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

6

4895052

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

7

4895072

SEAL

12шт.

8

4895073

VALVE SPRING

24шт.

9

4895074

CUP,18mm ID

24шт.

10

4895411

CUP

12шт.

11

4895085

EXPANSION PLUG,25.74mm

13шт.

11

4895408

PLUG,0.511" L

.511" OD

2шт.

12

4895089

PLUG,0.886" L

.886" OD

11шт.

13

4895406

EXPANSION PLUG,9.8mm OD

Intake

7шт.

14

4895407

EXPANSION PLUG,38.28mm OD

Exhaust, 38.28mm OD

2шт.

15

2830705

CYLINDER HEAD GASKET,1.15mm Thk

1,15 Thk

1шт.

15

2830704

CYLINDER HEAD GASKET,1.25mm Thk

1,25 Thk

1шт.

16

4897106

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

12шт.

Выбрано товаров: 21
