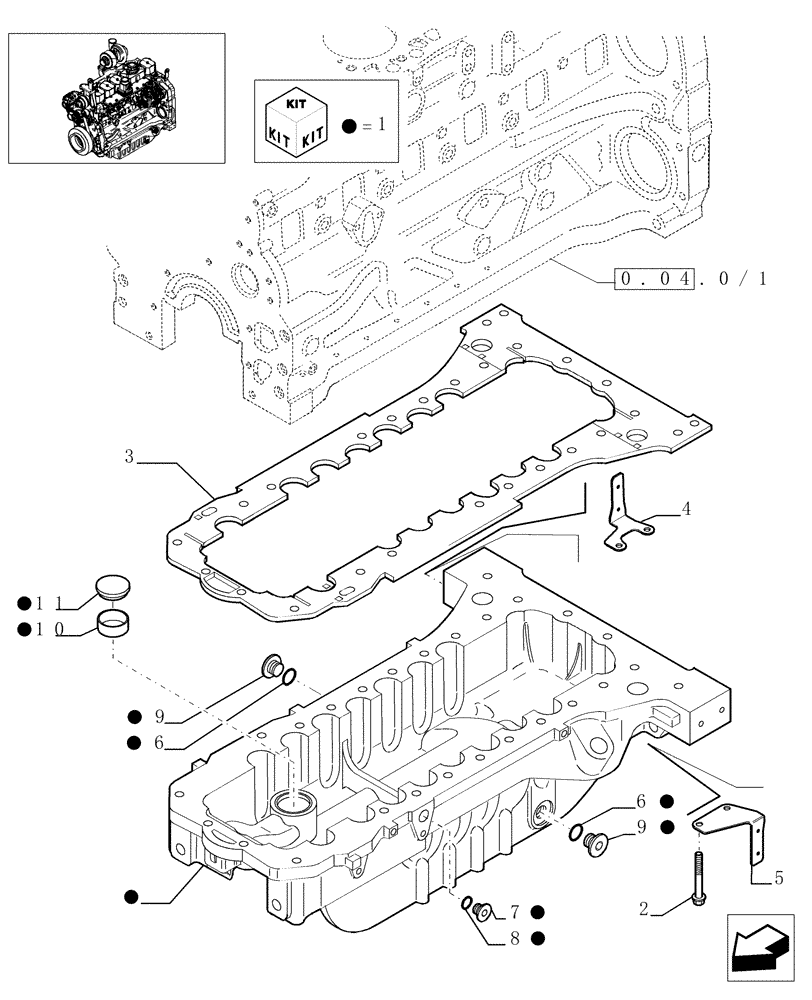

Запчасти Case IH MXU125 (0.04.2/01) - ENGINE OIL SUMP (01) - ENGINE

1

2830747

ENGINE OIL PAN

1шт.

2

4895339

SCREW,Hex Flange Head Cap, M8 x 20

8X20

2шт.

2

4892753

SCREW,7/16" - 18

24шт.

2

4895743

BOLT

6шт.

2

4892742

BOLT,Flng, M10 x 1.5 x 190mm, Cl 10.9

2шт.

3

4894301

OIL PAN GASKET SET

1шт.

4

87803022

SUPPORT

2шт.

5

87803023

SUPPORT

1шт.

6

4895584

O-RING,0.924mm ID x 0.103mm Width

2шт.

7

4893206

PLUG,M18 x 1.5

1шт.

8

4893207

SEALING WASHER,15.5mm ID x 26mm OD x 1.5mm Thk

1шт.

9

4894139

PLUG,Hex Soc, M22 x 1.5

2шт.

10

4895935

FILTER SCREEN

1шт.

11

4895936

PLUG

1шт.
