Запчасти Case IH MXU125 (1.81.9/02[06]) - (VAR.502-538-547-548) FRONT HYDRAULIC LIFT LESS FRONT POWER TAKE-OFF - PIPES (07) - HYDRAULIC SYSTEM

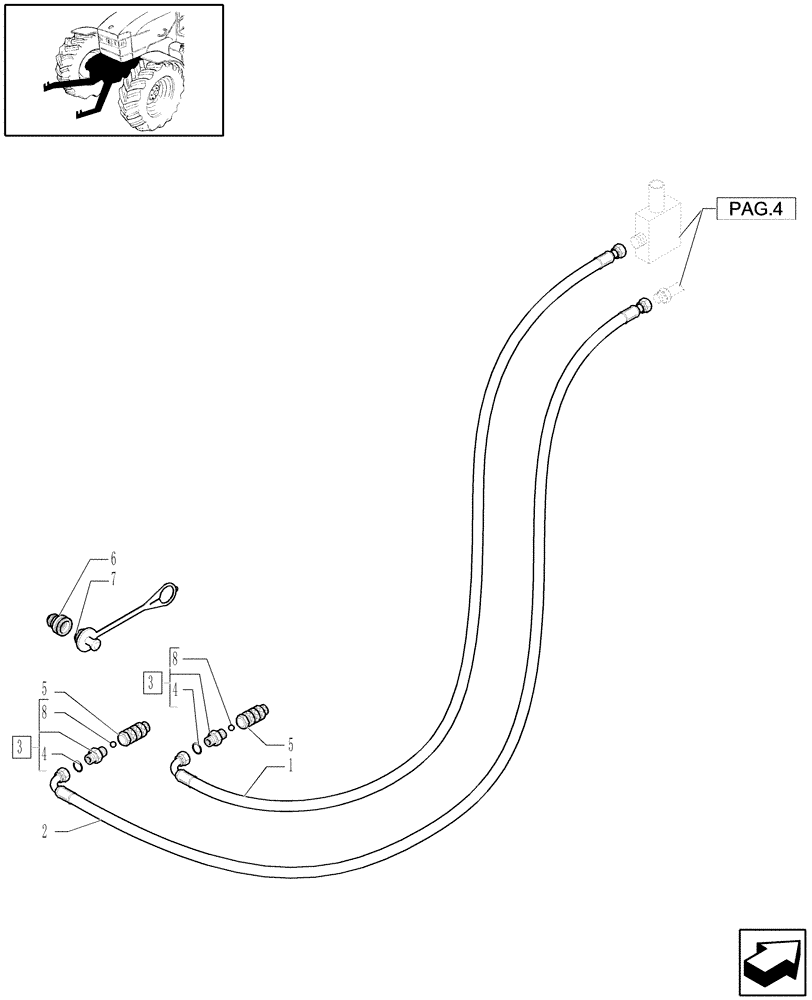

Схема запчастей Case IH MXU125 - (1.81.9/02[06]) - (VAR.502-538-547-548) FRONT HYDRAULIC LIFT LESS FRONT POWER TAKE-OFF - PIPES (07) - HYDRAULIC SYSTEM
5
2
8
4
6
7
5
3
1
8
3
4

Артикул

Название

Примечание

Количество

1

47057676

FLEXIBLE HOSE,Hyd, 12mm ID x 2860mm L

1"-14, 13/16"-16, 2860mm

2шт.

For MXU100, MXU110 only

1шт.

2

47057675

FLEXIBLE HOSE,Hyd, 12mm ID x 3100mm L

1"-14, 13/16"-16, 3100mm

2шт.

For MXU115, MXU125, MXU135 only

1шт.

3

5185524

HYD CONNECTOR

1"-14, 1/2"-14

2шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

83972881

COUPLING

2шт.

6

47127559

COUPLING, QUICK, FEM

Green

2шт.

7

5179576

PLUG,24mm, Green

2шт.

Выбрано товаров: 9
